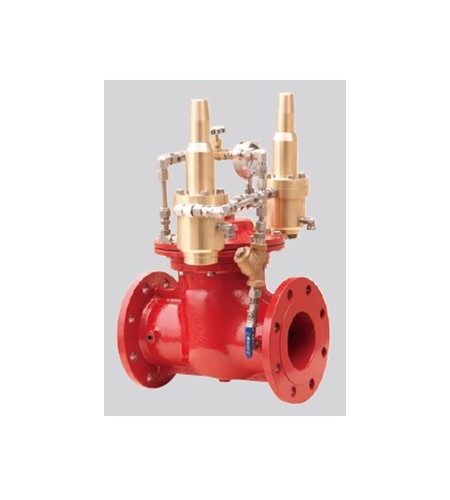

SURGE RELIEF VALVE (PILOT OPERATING TYPE)
Gambar Produk
SURGE RELIEF VALVE (PILOT OPERATING TYPE)
Update Terakhir
19-06-2019
Minimum Pembelian
1 Unit
Dilihat Sebanyak
77 kali
Lokasi
Jawa Barat - Bekasi - Jati Sampurna
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi SURGE RELIEF VALVE (PILOT OPERATING TYPE)
SURGE RELIEF VALVE (PILOT OPERATING TYPE)
Model : SRVP Type
Merk : Prosave
Origin : Korea
General Description :
Model SRVP consists of a main valve, low and high pilot valve, and accessory,
completely assembled and tested as a unit and ready for field installation.
SRV is install in the bypass line pipe to protect the piping system from the surge
(water hammer) by sudden flow change and pump sudden stop.
(water hammer) by sudden flow change and pump sudden stop.
Main Valve is open when low pilot valve anticipates the negative pressure in
piping system to prevent the pipe pressure rise, and when high pilot valve detects
the exceed pressure in piping system to discharge pressure.
Main Valve is closed tightly when normal operation is in state.
Benefits :
* Surge Anticipating & Pressure Relief
SRV consists of low and high pilot valve, the low pilot valve anticipate surge
(water hammer), the high pilot valve relieve the high pressure in piping system.
* Accurate and Precise Pressure Control
Main valve of pressure control is provided by accurate and precise pressure of
low & high pilot valve.
* Adjustable Opening and Closing Times
Open and close time of SRV depends on field site.
Quick open time and slight close time are adjustable.
