PR2 Profile Probe Delta T Devices
Perhatian!
Spesifikasi PR2 Profile Probe Delta T Devices
|
PR2 Profile Probe Delta T Devices |
|
|

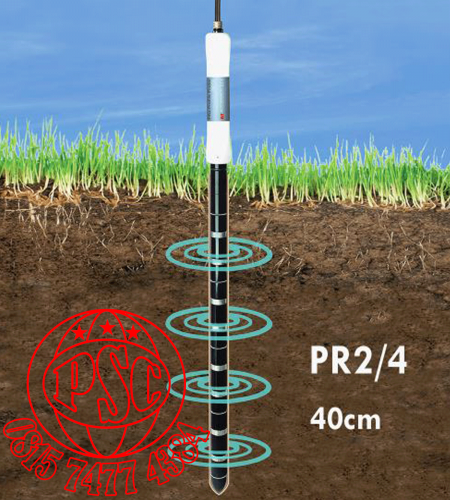

The PR2 Profile Probe is available in two sizes to measure to a depth of 40 cm or 100 cm |
|
|
The PR2/4 has sensing elements at 10/20/30/40 cm |
|
|
The PR2/6 has sensing elements at 10/20/30/40/60 and 100 cm |
|
|
Data Logging |
|
|
Profile Probes are available with analogue or SDI-12 outputs. |
|
|
For the analogue version, order PR2/4 or PR2/6. |
|
|
For the SDI-12 interface version, order PR2/4-SDI-12 or PR2/6-SDI-12. |
|
|
Please note that analogue and SDI‐12 probes cannot be mixed on the same cable system |
|
|
Specification |
|
|
For Analogue PR2 and SDI-12 PR2 |
|
|
Measurement |
Volumetric water content |
|
Accuracy |
± 0.04 m3.m-3 ( 4 % ) |
|
With soil-specific calibration |
|
|
Soil moisture measurement range |
Full accuracy over: |
|
0 to 0.4 m3.m-3 |
|
|
Full range : 0 to 1.0 m3.m-3 |
|
|
Salinity range |
50 to 400 mS.m-1 |
|
Salinity errors included in calibration |
|
|
Temp range |
Full accuracy over : 0 to 40 °C |
|
Output |
( ANALOGUE ) |
|
0 to 1.0 V differential |
|
|
PR2/6 : x 6 outputs, PR2/4 : x 4 |
|
|
( SDI-12 ) |
|
|
Digital |
|
|
Power requirement |
( ANALOGUE ) |
|
5.5-15 V, |
|
|
PR2/6 : ~120 mA for 1s |
|
|
PR2/4 : ~80 mA for 1s |
|
|
____________________ |
|
|
Minimum 7.5 V with 100 m cable |
|
|
( SDI-12 ) |
|
|
Power consumption <60 mA at 12 V DC |
|
|
Sleep current <2 mA at 12 V DC |
|
|
Environmental |
IP67 ( when installed in access tube ) |
|
Sample volume |
-95 % sensitivity within a cylinder of diameter 200 mm |
|
Sample volume is weighted towards soil immediately surrounding the rods |
|
|
Dimensions and weight |
PR2/6 : length 1350 mm |
|
PR2/4 : length 750 mm |
|
|
Both : 25.4 mm diameter |
|
|
PR2/6 : weight 1.2 kg |
|
|
PR2/4 : weight 0.8 kg |
|
|
Sensor calibrations |
Individual sensors are interchangeable |
|
Recalibration advised every 3 years ( depending on use ) |
|
|
Soil calibrations |
Generalised Mineral and Organic soil calibrations are supplied |
|
Accessories |
|
|
Hardware |
|
|
HH2 Moisture Meter – Readout Unit |
|
|
Main components and software |
|
|
PR-CB2 Carrying bag for PR2 |
|
|
Installation accessories |
|
|
PR2 Profile Probe Installation |
|
|
SPA1 Access Tube Spacer – 50 mm Long Tube |
|
|
SM-AUG-100 Spiral Auger, 45 mm diameter, length 1.2 m. |
|
|
ATL1 Access tube – Long – For Installation in Augered Hole |
|
|
ATS1 Access tube – Short – For Installation in Augered Hole |
|
|
Cables and networks |
|
|
PRC/M12-05 5 m Cable PR2 to DL6 |
|
|
PRC/w-05 5 m Cable PR2 to Bare Wire |
|
|
PRC/d-HH2 1.5 m cable PR2 to HH2 |
|
|
EXT/8W-05 5 m extension cable |
|
|
EXT/8W-10 10 m extension cable |
|
|
EXT/8W-25 25 m extension cable |
|
|
Spares and consumables |
|
|
PR2 Profile Probe – Spares Kit |
|
