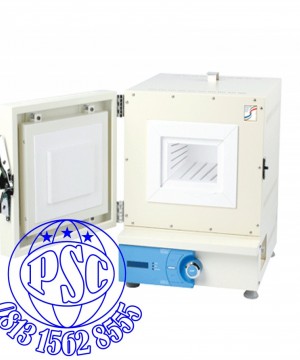

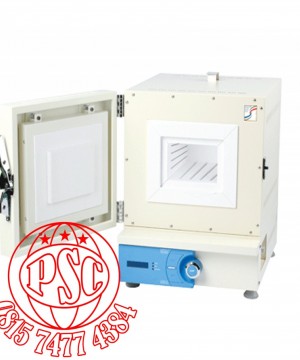

DAIHAN-brand® 1,000℃ Programmable Digital Muffle Furnaces, “FPX”, Exposed Heating Elements-type with Digital PID Programmable Control, Short Heat-up Time, Ceramic Fiber, 4-Side Heating, with Ceramic Fiber Plate, 3~63 Lit.

Specification

Capacity & Model and Temp. Range

3L FPX-03

4.5L FPX-05

12L FPX-12

14L FPX-14

27L FPX-27

63L FPX-63

300 ℃ ~ 1000 ℃

Heater

Kanthal A1, Exposed Wire Heating Elements, 4-Side Heating

Thermocouple

K-type Thermocouple

Heating Power

1.4 kW

1.8 kW

3.6 kW

4.0 kW

4.6 kW

9 kW

Required time to be reached 800℃

16 min

20 min

23 min

Display

LED

Controller

Programmable PID Controller : 3 Patterns 16 Segments

Safety Circuit

Over-Temp./-Current protection, Sensor Error Detection

Safety Switch for Door Opening

Material

Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External Ceramic Fiber-Insulation

Dimension

Internal ( cm )

13 × 25 × 9

15 × 30 × 10

20 × 30 × 20

25 × 35 × 16

30 × 30 × 30

40 × 40 × 40

( W x D x H )

External ( cm )

39 × 48 × 53

42 × 53 × 55

48 × 55 × 66

53 × 58 × 62

58 × 59 × 76

63 × 71 × 79

Packing Size ( W x D x H ) ( cm )

63 × 54 × 77

68 × 57 × 78

70 × 63 × 89

74 × 68 × 85

74 × 73 × 99

116 × 90 × 110

Gross Weight

47 kg

54 kg

59 kg

73 kg

83 kg

225 kg

Power Supply

1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz

1 Phase AC 120V, 60Hz or AC 230V, 50/60Hz or 3 Phase AC 380V, 50/60Hz
