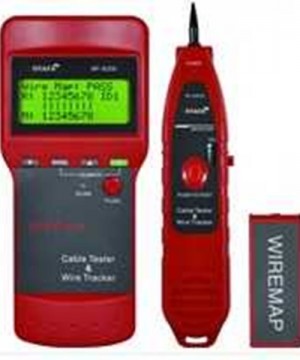

Multi Function Network Cable Tester NF8208
Gambar Produk
Multi Function Network Cable Tester NF8208
Update Terakhir
23-05-2019
Dilihat Sebanyak
10 kali
Lokasi
Jawa Barat - Purwakarta
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Multi Function Network Cable Tester NF8208
Feature Multi Function Network Cable Tester NF8208 :
One person enough to complete cable continuity check.
The function of probing the audio and tracing the cable.
Check network cable faults, such as open , short , jumper wire, reverse connection or cross-talk interference.
Measure cable length and determine the distance of open and short circuit.
Dynamically calibrate cable length and make length measurement as accurate as 95% .
Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.
Specifications Multi Function Network Cable Tester NF8208 :
Overall dimension: Main tester: 180× 80× 40mm; receiver: 218× 46× 29mm; Remote identifier: 77× 31× 21mm.
Power: Main tester uses 6V DC for power supply; Receiver uses 9V battery for power supply .
Display: Special 4 x 16 character big screen LCD lattice ( valid visual field 61.6 x 25.2mm) .
Type of cable tested: STP/ UTP twin twisted cable, coaxial cable, telephone line.
Type of cable detected: 5E, 6E, telephone wire, coaxial cable and other metal wires.
Ambient temperature in work: -10º C~ + 60º C
Tester Port: Tester RJ45 master port ( M) , tester LOOPBACK RJ45 port ( L) , hunting RJ45 port ( SCAN) ; Remote identifier RJ45 port ( R) , The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.
Length Measurement of Twin Twisted Cable: Scope: 1~ 350 M ( 3 ~ 200 ft) ; Calibration accuracy: 3% ( + / - 0.5M or + / - 1.5 ft) ( calibrating cable > 5M) ; Shipment accuracy: 5% ( + / - 0.5M or + / - 1.5 ft) . ( AMP, AT& T Class 5 cable) Display: M or ft.
Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M.
Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, reverse connection, cross-over or cross-talk interference.
Locating Cable: 8 Remote identifier test jacks ( ID 1 e ID 8) .
Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.
Kami Jual Multi Function Network Cable Tester NF8208, silahkan diorder ....
CV BERKAH AMANAH
CV BERKAH AMANAH distributor alat pengukuran dan alat pengujian. Kami menyediakan berbagai macam alat uji dan alat ukur. Dengan moto pelayanan konsumen adalah yang utama, kami selalu berusaha memperbaiki diri demi pelayanan yang memuaskan. Kami Jual Alat Pengukur Murah dan Jual Alat Uji Murah
