Spesifikasi Fluke 1503



Spesifikasi Fluke 1503

Alat Ukur Kuat Arus

Product Details

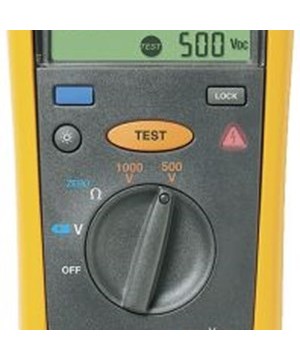

Fluke 1503 Insulation Tester

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.

With a remote probe, repetitive or hard-to-reach testing is made easy. Test leads, probes and alligator clips are also included.

Features and Benefits

• Insulation test range: MΩ to 2000 MΩ
• Insulation test voltages: 500 V, 1000 V
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• Auto-discharge of capacitive voltage for added user protection
• AC/DC voltage: 0.1 V to 600 V
• 200 mA Continuity
• Resistance: 0.01 Ω to 20.00 kΩ
• Save battery power with auto power off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
• Remote probe, test leads, probes and alligator clips included with each tester
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Specifications

Attribute Value
Tester Type Insulation Resistance Tester
Minimum Test Voltage 500V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 2GΩ
Display Type Graphic Display - Backlit
Test Current 200mA
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600V
Safety Category CAT III 600 V, CAT IV 600 V
Dimensions 203 x 100 x 50mm
Model Number p 1503
Length 203mm
Battery Type AA
Width 100mm
Weight 550g
Height 50mm

Harga Fluke 1503

 : CALL
