Spesifikasi Fluke 805

Spesifikasi Fluke 805

Alat Ukur Kuat Arus

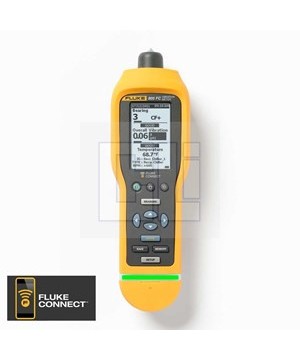

Make go or no-go maintenance decisions with confidence. The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.

The Fluke 805 has a unique sensor tip design that minimises measurement variations caused by device angle or contact pressure. This reduces operator error and improves the accuracy and repeatability of quick vibration screening. The meter also provides a severity scale for both overall vibration and bearing condition readings, delivering more information than comparable vibration pens. Logged data can be easily uploaded into Excel to create trending reports.

FEATURES:


Innovative sensor design minimizes measurement variations caused by device angle or contact pressure.
Consistent data quality at both low and high frequency ranges.
Four-level severity scale assesses urgency of problems for overall vibration and bearing condition.
Exportable data via USB.
Trending in Microsoft® Excel using pre-built templates.
Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines.
Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz.
Compare vibration levels with ISO-10816 severity scales and store results to the Fluke Connect Cloud.
Coloured lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements.
Acceleration, Velocity, and Displacement units of measure.
Temperature measurement with Spot IR Sensor increases diagnostic capabilities.
On-board memory holds and saves up to 3,500 measurements.
External accelerometer support for hard to reach locations.
Audio output.
Flashlight for viewing measurement locations in dark areas.
Large screen with high resolution for easy navigation and viewing.

Fluke 805 Specification:

  • Low frequency range: 10 Hz to 1,000 Hz.
  • High frequency range: 4,000 Hz to 20,000 Hz.
  • Severity levels: Good, Satisfactory, Unsatisfactory, Unacceptable.
  • Vibration limit: 50 g peak (100 g peak-peak).
  • A/D converter: 16-bit.
  • Signal to noise ratio: 80 dB.
  • Sampling rate: Low frequency: 20,000 Hz, High frequency: 80,000 Hz.
  • Memory: Up to 3,500 measurements.
  • Real time clock backup: Coin battery.
  • IP rating: IP54.
  • Vibration limit: 500g peak.
  • Drop test: 1 meter.
  • Battery type: AA (2) Lithium Iron Disulfide.
  • Battery life: 250 measurements.
  • Dimensions (L x W x H): 24.1 cm x 7.1 cm x 5.8 cm, (9.5 in x 2.8 in x 2.3 in).
  • Weight: 0.40 kg (0.89 lb).
  • Connectors: USB mini-B 7-pin, external sensor jack (SMB connector).
  • Fluke 805 FC Warranty: 1 year.



Includes: Fluke 805 FC Vibration Meter, USB cable, Storage case, Belt holster, Quick reference guide, CD-ROM (includes MS Excel template and documentation)and Two (2) AA batteries.
