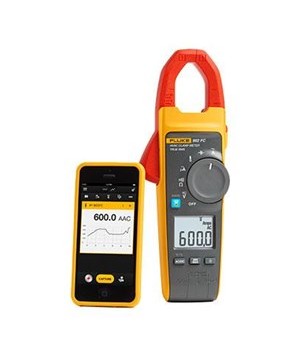

Fluke 902 FC True rms HVAC Clamp Meter
Perhatian!
Spesifikasi Fluke 902 FC True rms HVAC Clamp Meter
Spesifikasi Fluke 902 FC True rms HVAC Clamp Meter
Alat Laboratorium Umum
SPECIFICATION Fluke 902 FC True rms HVAC Clamp Meter
Function
A ac (via Jaw)
Resolution 0.01/0.1 A
Accuracy 2.0% ±5 digit (45-65 Hz)
2.5% ±5 digit (65-400 Hz)
Range 60.00/600.0 A
Crest Factor (50Hz or 60Hz) 2.5 MIN@220 A
3.0 MIN@180 A
> 1.4 MIN@600 A
Add 2% for CF>400 A
V ac
Resolution 0.1 V
Accuracy 1.5% ±5 digits
Range 600.0 V
V dc
Resolution 0.1 V
Accuracy 1.5% ±5 digits
Range 600.0 V
Ohms
Resolution 0.1/1/10
Accuracy 1% ±5 digits
Range 600/6000/60.00 kΩ
Capacitance
Resolution 0.1/1 µF
Accuracy 1% ±4 digits
Range 100.0/1000 µF
µA
Resolution 0.1 µA
Accuracy 1% ±5 digits
Range 200 µA
Contact temperature
Resolution 0.1 C/F
Accuracy 1% ±8 digits
Range -10 to 400 °C (14 °F to 752 °F)
Continuity beeper
Beeper volume 75 dBA nom. 15 cm. from case front
On threshold <=30 Ω
Mechanical and General Specifications
Maximum voltage between any terminal and earth ground 1000 V
Battery type 2 AA alkaline batteries, NEDA 15A, IEC LR6
Temperature Operating: -10 °C to +50 °C (14 °F to +122 °F)
Storage: -40 °C to +60 °C (-40 °F to +140 °F)
O
perating humidity Non condensing
(< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104°F to 122 °F))
Altitude Operating: 3,000 m (9,842 ft)
Storage: 12,000 m (39,370 ft)
Dimensions 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
Weight (meter only) 419 g (15 oz)
Safety
IEC 61010-1, Pollution Degree 2
IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
IP Rating IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID:T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC) International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR
11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47
CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
