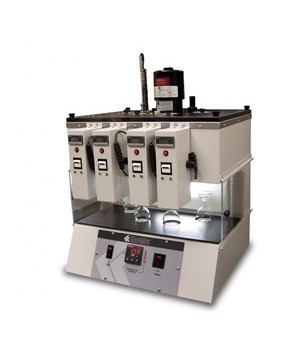

SV4000 Saybolt Viscosity Bath for Automatic Viscosity Timing

Update Terakhir
13-06-2019
Minimum Pembelian
1 unit
Dilihat Sebanyak
2 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Rp. 1
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi SV4000 Saybolt Viscosity Bath for Automatic Viscosity Timing



Spesifikasi SV4000 Saybolt Viscosity Bath for Automatic Viscosity Timing

Alat Laboratorium Umum

K21414 Saybolt viscosity bath for automatic viscosity timming 115v 60 hz

K21424 saybolt viscosity bath for automatic viscosity timming 220-240v 50/60 hz

Determines the time required for 60mL of sample to flow through a calibrated orifice under precisely controlled conditions. Saybolt Universal Seconds (SUS) is the standard measurement for lubricants, insulating oils and lighter fuel grades, and Saybolt Furol Seconds (SFS) is used for heavier oils and bitumens.

  • Microprocessor control of temperature between ambient and 240 °C (464°F)
  • Four tube capacity
  • Dual digital displays show setpoint and actual temperature
  • Selectable temperature scale - Celsius or Fahrenheit
  • Automatic timing option for simplified, accurate measurement of efflux times
  • Conforms to ASTM D88, D244, E102, and related specificationsConstant temperature bath with automatic timing feature for viscosity determinations using Saybolt viscometer tubes and orifices. At the push of a button, the automatic timer starts the sample flow, senses the 60mL end point, and digitally records and displays the efflux time in 0.1 seconds resolution with an accuracy of 0.05%. Automatic timing improves testing accuracy and convenience, eliminating the chain and cork assembly and the need to manually time each sample. Timer installation is available in any configuration from 1 to 4 positions. Insulated bath interior is constructed entirely of heavy gauge stainless steel. A built-in overflow pipe and drain valve simplifies filling of the bath fluid to the proper level. Chemical resistant top plate provides excellent insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical resistant polyurethane-epoxy finish.
  • Cleaning Plunger
  • Oil Strainer
  • Tube Nut Wrench
  • Port Closures
  • Chained Corks
  • Withdrawal Tube
  • Orifice Wrench
  • Port Covers
  • Thermometer Supports

    Conforms to the specifications of: ASTM D88, D244, E102, AASHTO T72; FTM 791-304

    Capacity: 4 viscometer tubes

    Temperature Range: ambient to 464 °F (240 °C)

    Temperature Stability: ± 0.05 °F (± 0.03 °C)

    Bath Capacity: 5 gal (19 L)

    Recommended Bath Medium: water or suitable heat transfer fluid115V 60Hz, Single Phase, 12.3A
    220-240V 50/60Hz, Single Phase, 6.4A

    lxwxh,in.(cm): 29 x 25 x 33 (74x63.5x84)

    Net Weight: 90 lbs (40.8 kg)

    Shipping Weight: 102 lbs  (46.3 kg)

    Dimensions: 28x24x33 in. (72x61x84 cm)
