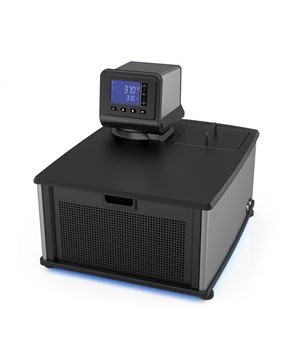

Refrigerated Constant Temperature Circulating Baths
Perhatian!
Spesifikasi Refrigerated Constant Temperature Circulating Baths
Spesifikasi Refrigerated Constant Temperature Circulating Baths
Alat Laboratorium Umum
K33074 Circulating Refrigrated/Heating bath, standart,-20° to 150°c,7L Low profile,120v 60 hz |
K33075 Circulating Refrigrated/Heating bath, standart,-20° to 150°c,7L Low profile,240v 50 hz |
K33076 Circulating Refrigrated/Heating bath, programmable,-20° to 200°c,7L Low profile,120v 60 hz |
K33077 Circulating Refrigrated/Heating bath, programmable,-20° to 200°c,7L Low profile,240v 50 hz |
K33078 Circulating Refrigrated/Heating bath, standart,-20° to 150°c,7L vertical ,120v 60 hz |
K33079 Circulating Refrigrated/Heating bath, standart,-20° to 150°c,7L vertical,240v 50 hz |
K33080 Circulating Refrigrated/Heating bath, programmable,-20° to 200°c,7L vertical,120v 60 hz |
K33081 Circulating Refrigrated/Heating bath, programmable,-20° to 200°c,7L vertical,240v 50 hz |
K33082 Circulating Refrigrated/Heating bath, standart,-30° to 150°c,15L Low tempereture ,120v 60 hz |
K33083 Circulating Refrigrated/Heating bath, programmable,-30° to 200°c,15L Low tempereture ,240v 50 hz |
K33086 Circulating Refrigrated/Heating bath, standart,-40° to 150°c,15L Low tempereture ,120v 60 hz |
K33087 Circulating Refrigrated/Heating bath, standart,-40° to 150°c,15L Low tempereture ,240v 50 hz |
K33088 Circulating Refrigrated/Heating bath, programmable,-40° to 150°c,15L Low tempereture ,120v 50 hz |
K33089 Circulating Refrigrated/Heating bath, programmable,-40° to 150°c,15L Low tempereture ,240v 50 hz |
K33090 Circulating Refrigrated/Heating bath, standart,-25° to 150°c,28L Low profile,120v 60 hz |
K33091 Circulating Refrigrated/Heating bath, standart,-20° to 150°c,28L Low profile,240v 50 hz |
K33092 Circulating Refrigrated/Heating bath, programmable,-25° to 150°c,28L Low profile,120v 60 hz |
K33093 Circulating Refrigrated/Heating bath,programmable,-25° to 150°c,28L Low profile,240v 50hz |
- Standard Digital and Programmable models
- 7L, 15L and 28L models
- Easy-Access Reusable Filter
- Adjustable Over-Temperature Cutoff and Low-Liquid Cutoff
- Temperature readout in °C or °FProgrammable Model - In addition to high temperature capability, the Refrigerated Constant Temperature Circulating Baths feature exceptional cooling ability. The 13L and 28L models feature an energy saving modulating refrigeration control system. This permits fast bath cooling even at high temperatures without excessive energy consumption. The programmable model offers the widest temperature range along with high stability and variable speed pressure/suction (duplex) pump. RS232 interface and software for PC programming are standard. Labview™ drivers and Excel® macros offer even greater programming and data logging convenience. The full graphic LCD display with multi-language help menus aid in operation and set-up. Standard Model - The Standard Refrigerated Constant Temperature Circulating baths offer the same cooling capacity as their programmable counter part. The standard digital controller is equipped with three user-defined temperature preset buttons for rapid set point changes. The bright LED display provides read and set capability, plus ±0.05°C temperature stability. The pump is 2-speed pressure (simplex) type is suitable for closed loop applications.
Diaxh,in.(cm)
K33074/ K33075: 15.75x18.75x17 in (40x47.6x43.2 cm)
K33076/ K33077: 15.75x18.75x17 in (40x47.6x43.2 cm)
K33078/K33079: 15.75x8.25x22.5 in (40x21x57.1 cm)
K33080/K33081: 15.75x8.25x22.5 in (40x21x57.1 cm)
K33082/K33083: 17x15.5x24.75 in (43x39.4x62.9 cm)
K33084/K33085: 17x15.5x24.75 in (43x39.4x62.9 cm)
K33086/K33087: 17x15.5x24.75 in (43x39.4x62.9 cm)
K33088/K33089: 17x15.5x24.75 in (43x39.4x62.9 cm)
K33090/K33091: 19.5x27.5x18.5 in (49.5x70x47 cm)
K33092/K33093: 19.5x27.5x18.5 in (49.5x70x47 cm)
Net Weight:
Refrigerated Baths: 58 lbs (26.3 kg)
Low Temperature: 110 lbs (49.9 kg)Shipping Weight
Refrigerated Baths: 64 lbs (29.0 kg)
Low Temperature: 130 lbs (59.0 kg)Dimensions
Refrigerated Baths: 22x13x28 in. (55.9x33.0x71.1 cm)
Low Temperature: 33x22x38 in. (83.8x55.9x96.5 cm)
