Spesifikasi Cloud and Pour Point Test Equipment
Spesifikasi Cloud and Pour Point Test Equipment
Alat Laboratorium Umum
K46000 Could and pour point chamber
K46001 Could and pour point chamber with inlet / outlet fittings
K46100 Could and power point bath,bench model,3-bath 115v 60hz
K46195 Could and power point bath,bench model,3-bath 220-240v 50hz
K46196 Could and power point bath,bench model,3-bath 220-240v 60hz
K46300 Could and power point bath,bench model,4-bath 115 v 60hz
K46395 Could and power point bath,bench model,4-bath 220-240v 50hz
K46396 Could and power point bath,bench model,4-bath 220-240v 60hz
K46500 Could and power point bath,bench model,5-bath 115 v 60hz
K46595 Could and power point bath,bench model,3-bath 220-240v 50hz
K46596 Could and power point bath,bench model,3-bath 220-240v 60hz
Cloud point and pour point are indicators of the lowest temperature of utility for petroleum products. The sample is periodically examined while it is being cooled in the cloud and pour point apparatus. The highest temperature at which haziness is observed (cloud point), or the lowest temperature at which movement of the oil is observed (pour point), is reported as the test result.
- Conforms to ASTM D97, D2500 and related specifications
- Compact four-place portable chamber

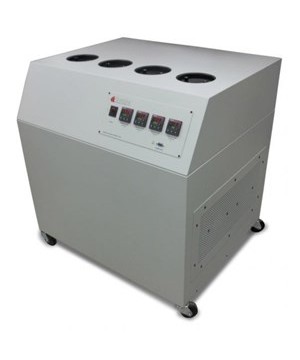

- Mechanically refrigerated models with factory preset cold bathsCloud and Pour Point Chamber–Immerses four copper test jackets in suitable freezing mixtures at the required depth per ASTM specifications. Available with inlet and outlet connections for circulating refrigerated coolant from an external source. Consists of steel exterior housing with polyurethane enamel finish and all copper interior for corrosion resistance. Removable composition top plate and 1⁄2" (13mm) cork insulation around interior aid in cold retention. Supplied with copper jackets, gaskets, disks, and thermometer holders for test jars and cooling bath. Order test jars and thermometers separately. Mechanically Refrigerated Baths–Bench-model and floor-model test units with multiple four-jacket mechanically refrigerated baths, each factory preset at a different temperature for convenient cloud and poun point testing. Bench model has three baths, set at +32, 0 and -27°F (0, -18 and -33°C); floor model available with either four or five baths, set at +32, 0, -27 and -60°F (0, -18, -33 and -51°C) and +32, 0, -27, -60 and -92°F (0, -18, -33, -51, and -69°C) respectively. Each bath has a phenolic top plate with ports for thermometer and four copper test jackets. Synthetic sponge covers over each top plate and gasketed hoods over each bath prevent excessive ice accumulation around the test jackets. Cascade hermetic refrigeration system provides reliable long term service. Bath interior is made of stainless steel, cabinet is constructed of polyester-epoxy finished steel housing. Floor model rides on swivel castors. Supplied with test jackets, gaskets, disks, and thermometer holders for test jars and cooling baths.
Conforms to the specifications of:
ASTM D97, D2500, D5853, D6074, D6158; IP 15, 219; ISO 3015, 3016; DIN 51597; FTM 791-201; NF T 60-105Model K46100 Refrigerated Bench Model: 115V 60Hz, Single Phase, 12.2A 220-240V 50/60Hz, Single Phase, 6.9A
Model K46300/K46500 Refrigerated Floor Model: 115V 60Hz, Single Phase, 17.7A 220-240V 50/60Hz, Single Phase, 9.7AK46000: dia.xh,in.(cm) - 10 1⁄2x12 (27x30)
K46100: lxwxh,in.(cm) - 30x28x35 (76x71x89)
K46300/K46500: lxwxh,in.(cm) - 44x38x4 (112x97x115)Net Weight:
Cloud and Pour Point Chamber: 14 lbs (6.4 kg)
Bench Model: 200 lbs (90.7 kg)
Floor Model: 400 lbs (181.4 kg)Shipping Weight
Cloud and Pour Point Chamber: 18 lbs (8.2 kg)
Bench Model: 299 lbs (135.6 kg)
Floor Model: 570 lbs (258.5 kg)Dimensions
Cloud and Pour Point Chamber: 20x16x14 in. (50.8x40.6x35.6 cm)
Bench Model: 32x28x34 in. (81.3x71.1x86.4 cm)
Floor Model: 44x38x45 in. (111.8x96.5x114.3 cm) - 332-004-001 Test Jar
- Clear, flat bottom jar with sample height graduation
- 250-000-05F ASTM 5F Thermometer, range: –36 to +120°F
- 250-000-05C ASTM 5C Thermometer, range: –38 to +50°C
- 250-000-06F ASTM 6F Thermometer, range: –112 to +70°F
- 250-000-06C ASTM 6C Thermometer, range: –80 to +20°C
- K46120 Cork Disk
- K46130 Foam Sponge Disc
- AS568-219 Gasket, for test jar
- K460-0-8 Thermometer Holder, for test jar
- K460-1-7B Copper Jacket
