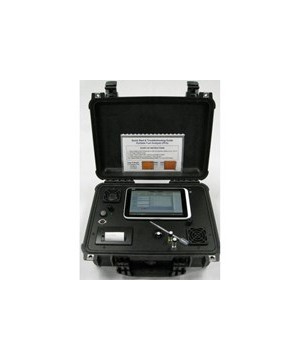

Portable Fuel Property Analyzer

Update Terakhir
13-06-2019
Minimum Pembelian
1 unit
Dilihat Sebanyak
12 kali
Lokasi
DKI Jakarta - Jakarta Pusat - Kemayoran
Harga
Rp. 1
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Portable Fuel Property Analyzer



Spesifikasi Portable Fuel Property Analyzer

Alat Laboratorium Umum

k24900 poertable fuel property analyzer,110/220V

The Portable Fuel Property Analyzer (PFPA) provides rapid fuel analysis anywhere it’s needed: the plant, port, or field. Analysis is obtained in seconds using only a 2 mL fuel sample. The PFPA uses Near Infrared Spectroscopy combined with Advanced Multivariate Analysis to determine key fuel properties that influence engine performance. The PFPA property determinations were developed and validated according to ASTM E1655 "Standard Practice for Infrared Multivariate Quantitative Analysis" using the property values of a diverse matrix of over 800 fuels from around the world determined by traditional ASTM methods.

  • One Analyzer for all fuel types
  • only 2mL of fuel required
  • No sample preparation required
  • Analyzer warm-up takes <1 minute
  • Complete analysis in 10 seconds
  • Permanently aligned and calibrated
  • Light weight, portable and easy to use
  • Rugged design, no moving parts
  • Analysis based on ASTM Data, developed and validated according to ASTM E1655
  • Analysis software and tablet computer included
  • Imbedded Printer
  • Optional 4 hour rechargeable battery pack
  • Fuel Properties: Developed and validated according to ASTM E1655





    Operation: Warm-up Time: 1 minute; Measurement Time: 10 seconds

    Sampling: 2 mL glass vials (disposable)

    Analyzer:



    Measurement Type: Near Infrared Spectroscopy
    Optical Design: Dispersive (no moving parts)
    Light Source: Incandescent Lamp

    Detector: 256 pixel InHaAs

    Spectral Resolution: 3 – 6 nm (20 – 30 cm-1)

    Spectral Range: 1000 to 1600 nm

    Calibration: Factory set using NIST standard lamp

    Analysis Calibration: Each unit is calibrated with a diverse matrix of over 800 fuels

    System Check: Methylene Chloride Matrix

    Outlier Detection: Non fuel or contaminated fuel rejected

    Data System Computer: Tablet with Windows 8.1

    Sample Storage: Over 1000 measurements

    Data Export: USB Port, Ethernet, WiFi

    Data Printout: Thermal Printer

    Environment Dimensions: 7 x 13 x 16 in. (17.4x33x40.6 cm)

    Weight: 14 lbs (6.24 kg)

    Power: 120/240 VAC 50/60 Hz or 12 VDC with automotive lighter adapter. (Optional rechargeable battery pack)

    Operating Temperature: 35 - 95°F (0 - 40°C)

Harga Portable Fuel Property Analyzer

 : CALL
