Spesifikasi KOEHLER K38500 Apparent Viscosity of Engine Oils



Spesifikasi KOEHLER K38500 Apparent Viscosity of Engine Oils

Alat Laboratorium Umum

Test Method
Determines the measurement of the Yield Stress, Apparent Viscosity and Borderline Pumping Temperature (BPT) of engine oils. Borderline pumping temperature is a measure of the lowest temperature at which an engine oil can be continuously and adequately supplied to the oil pump inlet of an automotive engine. Provides a correlation between the temperature at which the viscosity of engine oils reaches a critical value and the borderline pumping failure temperature in engines at the test method specified shear stress.



Click on the image to view a larger photo of the instrument.

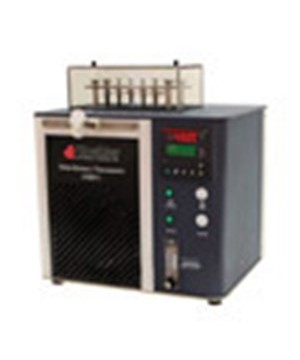

K38500 Mini-Rotary Viscometer
• Testing capacity of up to 10 samples.
• Microprocessor temperature controllers store all testing profiles in
memory.
• Unique design is fully self-contained - no external refrigeration or heating
apparatus needed.
• Advanced direct refrigeration technology eliminates the need for liquid cooling mediums such as methanol.
• Removable test cells allow for easy cleaning, sample agitation and advance sample preparation.
• New rotor design eliminates possible interference with water and ice.
• Internal hermetic refrigeration system provides direct instant cooling.
• Power-saver feature allows testing profile to resume in the event of a brief power interruption.
• Internal gas system provides a continuous blanket of dry gas over
samples to eliminate moisture buildup.
• Rotor stator rack supplied for convenient cleaning, drying, and storage.
• Safety features include high pressure cutout and high temperature limits.
• Rotor stator sets included with instrument. Additional sets readily
available.
• Optional Software Package available

Specifications
Conforms to the specifications of:
ASTM D4684; SAE J300; ILSAC GF3-GF4
In accordance with the specifications of:
  ASTM D3829, D6821*, D6896
* With available Drive Line equipment sold separately
Cabinet Material: Stainless steel and durable thermoplastic
Temperature Range: +80°C to -40°C (176°F to -40°F)
Bath Design: Solid, direct cooling without liquids
Cooling Rate: Single Unit: 5.0°C per minute maximum
Refrigerant: R-507
Compressor Size: 1/3 Horsepower
Electrical Requirements:
115V 50/60Hz, 15A
220V 50/60Hz, 7A
Temperature Control: +/- 0.1°C, digital readout
Heating Capacity: 600 Watts
Testing Capacity: 10 samples

Included Accessories
Removable Rotor/Stator Sets (10)
Rotor/Stator Holding Rack
Stator Removal Tool
Moisture Cover
Set of Weights & Strings
Air Filter Dryer and Desiccant

Dimensions lxwxh,in.(cm)
15.5x12.5x13.5 (39x32x34)
Net Weight: 105 lbs (47.6 kg)

Shipping Information
Shipping Weight: 143 lbs (64.86 kg)
Dimensions: 23 x 19 x 27 in (58.4 x 48.3 x 68.6 cm)


Ordering Information


Catalog
Number

Product Description

K38500 Mini-Rotary Viscometer, 115V 50/60Hz
K38590 Mini-Rotary Viscometer, 220V 50/60Hz
Accessories


Catalog
Number

Product Description

K38500-1

Stator Insertion/Removal Tool (SIRT)

K38500-2

Moisture Cover
K38500-3

Rotor/Stator Set (1 Set)

K38500-4

Rotor/Stator Set (Set of 10)

K38500-5

Carriage Wheel Assembly

K38500-6

Stainless Steel Thumb Nut

K38500-7

Air Filter Dryer with Desicant

K38500-8

Rotor/Stator Holding Rack

K38500-9

MRV Weight Set – Standard

K38500-10

N105B Reference Oil (Pint)

K38500-11

MRV String Set (Qty 10)

K38500-12

MRV Driveline Rotor (for D6821)

K38500-13

MRV Weight Set – Driveline (for D6821)

K38500-14

Desiccant Media – 1 lb.
