Spesifikasi K21410 SV3000 SV4000 Saybolt Viscosity Baths with Automatic Timing Option
Spesifikasi K21410 SV3000 SV4000 Saybolt Viscosity Baths with Automatic Timing Option
Alat Laboratorium Umum
Test Method
Determines the time required for 60mL of sample to flow through a calibrated orifice under precisely controlled conditions. Saybolt Universal Seconds (SUS) is the standard measurement for lubricants, insulating oils, and lighter fuel grades, and Saybolt Furol Seconds (SFS) is used for heavier oils and bitumens.
Features and Benefits
• Microprocessor control of temperature between ambient and 240°C (464°F)
• Four tube capacity
• Dual digital displays show setpoint and actual temperature
• Selectable temperature scale - Fahrenheit or Celsius
• Automatic timing option for simplified, accurate measurement of efflux times
• Conforms to ASTM D88, D244, E102, and related specifications

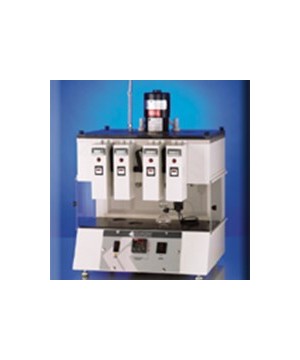

K21410/K21420 Saybolt Viscosity Bath (top); K21414/K21424 Saybolt Viscosity Bath (bottom).
Click on the image to view a larger photo of the instrument.
SV3000/SV4000 Saybolt Viscosity Bath
Constant temperature bath with available automatic timing feature for viscosity determinations using Saybolt viscometer tubes and orifices. Microprocessor PID circuitry assures precise temperature control within ASTM specified tolerances throughout the operating range of the bath. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Two place calibration offset is provided. Accommodates four viscometers and four 60mL receiving flasks. Sliding draft shields and a chemical-resistant alignment plate facilitate handling of the flasks, and glare-free fluorescent backlighting is provided for easy viewing of the samples. Communications software (RS232, etc.) ramp-to-set, and other enhanced features are available at additional cost.
Automatic Timing Option — At the push of a button, the automatic timer starts the sample flow, senses the 60mL end point, and digitally records and displays the efflux time in 0.1 seconds resolution with an accuracy of 0.05%. Automatic timing improves testing accuracy and convenience, eliminating the chain and cork assembly and the need to manually time each sample. Timer installation is available in any configuration from one to four positions.
Bath Construction and Safety Features — Insulated bath interior is constructed entirely of heavy gauge stainless steel. A built-in overflow pipe and drain valve simplifies filling of the bath fluid to the proper level. Chemical resistant top plate provides excellent insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical-resistant polyurethane-epoxy finish.
Included Accessories
Thermometer Supports (4)
Oil Strainer
Tube Nut Wrench
Port Closures (2)
Cleaning Plunger
Chained Corks (4)
Withdrawal Tube
Orifice Wrench
Port Covers (4)
Specifications
Conforms to the specifications of: ASTM D88, D244, E102; AASHTO T72; FTM 791-304
Capacity: 4 viscometer tubes
Temperature Range: ambient to 464°F (240°C)
Temperature Stability: ± 0.05°F (± 0.03°C)
Bath Capacity: 5 gal (19L)
Recommended Bath Medium: water or suitable heat transfer fluid
Electrical Requirements
115V, 50/60Hz, single phase, 12.3A
220-240V, 50/60Hz, single phase, 6.4A
Dimensions lxwxh,in.(cm)
29x25x33 (74x64x84)
Net Weight: 65 lbs (30kg)
Shipping Information
Shipping Weight: 82 lbs (37kg)
Dimensions: 10 Cu. ft.
Ordering Information
Catalog
NumberProduct Description
Electrical Requirements K21410
SV3000 Saybolt Viscosity Bath
115V, 50/60Hz
Single Phase, 12.3AK21420 SV3000 Saybolt Viscosity Bath 220-240V, 50/60Hz
Single Phase, 6.4AK21414 SV4000 Saybolt Viscosity Bath for Automatic Viscosity Timing 115V, 50/60Hz
Single Phase, 12.3AK21424 SV4000 Saybolt Viscosity Bath for Automatic Viscosity Timing 220-240V, 50/60Hz
Single Phase, 6.4A
Accessories
Catalog
NumberProduct Description
Electrical Requirements
Additional Information
K21404 Automatic Saybolt Viscosity Timing Sensor 115V, 50/60Hz
Each port can accommodate one sensor for automatic timing operation on SV4000 Saybolt Viscosity Baths. K21494 Automatic Saybolt Viscosity Timing Sensor 220-240V, 50/60Hz
355-001-002
Silicone Heat Transfer Fluid - 1 Gallon Container
Minimum flash point 620°F (326°C). Order quantity of 5 per bath.
355-001-004
Silicone Heat Transfer Fluid - 5 Gallon Container
Minimum flash point 620°F (326°C). Order quantity of 1 per bath.
