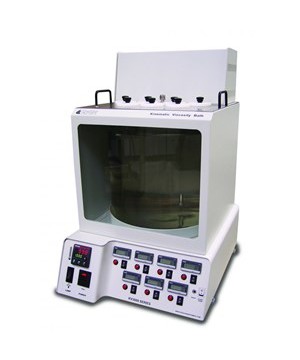

KV3000 Kinematic Viscosity Bath with Integrated Digital Timing
Perhatian!
Spesifikasi KV3000 Kinematic Viscosity Bath with Integrated Digital Timing
Spesifikasi KV3000 Kinematic Viscosity Bath with Integrated Digital Timing
Alat Laboratorium Umum
K23790 KINEMATIC VISCOCITY BATH 12'',220-240V 50/60 HZ
K23796 KINEMATIC VISCOCITY BATH 18'',220-240V 50/60 HZ
Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
- Microprocessortemperature control between ambient and 150 °C (302 °F)
- Integrated digital timing for easy measurement of sample efflux times
- Dual digital displays show setpoint and actual bath temperature
- Selectable temperature scale - Fahrenheit or Celsius
- Integrated redundant overtemperature and low liquid level cut-off circuitry
- Conforms to ASTM D445, D2170 and related specifications
Conforms to the specifications of: ASTM D445, D6074, D6158; IP 71; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
Temperature Control Range: ambient to 150°C (302°F); sub-ambient to 10°C with external cooling
Display: 0.1°C/0.1°F resolution, calibrate to 0.01°C/0.01°F
Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range Integrated timing.
Seven individual start/stop timers with displays to 0.1 seconds, accurate to within 0.01%
Communication: RS232, RS485
Viscometer ports: Seven round 2" (51 mm) ports
Bath Medium: Water or suitable heat transfer fluid
Bath Capacity:
12": 5.8 gal (22L)
18": 8.9 gal (33.7L)
115V 60Hz, Single Phase, 12.6A
220-240V 50/60Hz, Single Phase, 7.2A
lxwxh, in. (cm)
12" Bath: 20 1/4 x 15 1/4 x 24 1/2 (51x39x62)
18" Bath: 20 1/4 x 15 1/4 x 30 1/2 (51x39x77)
Net Weight:
12" Bath: 78 lbs (35.5 kg)
18" Bath: 90 lbs (41 kg)
Shipping Weight
12" Bath Depth: 95 lbs (43.1 kg)
18" Bath Depth: 100 lbs (45.4 kg)
Dimensions
12" Bath Depth: 28x24x33 in. (71.12x60.96x83.82 cm)
18" Bath Depth: 28x24x33 in. (71.12x60.96x83.82 cm)
- 378-025-C01 thru 378-700-C01 Cannon®-Fenske Viscometer Tubes, Size 25 thru 700
- 378-025-C02 thru 378-700-C02 Cannon®-Fenske Opaque Reverse Flow Viscometer Tubes, Size 25 thru 700
- 378-000-C03 thru 378-005-C03 Ubbelohde Viscometer Tubes, Size 0 thru 5
- K23700-SFW-A Kinematic Viscosity Software
- K22090 Withdrawal Bulb
- K23311 Rubber Stopper for Viscometer Tube, pk/12
- K23350 Universal Viscometer Holder, Rectangle
- K23351 Universal Viscometer Holder, Round
- K23363 Modified Koppers Viscometer Holder, Round
- K23381 Cannon-Fenske Routine Viscometer Holder, Round
- K23382 Ubbelohde Viscometer Holder, Round
- K23383 Cross-Arm Viscometer Holder, Round
- K23384 Cannon-Ubbelohde Semi-Micro Viscometer Holder, Round
- K23387 BS/IP/RF U-Tube Viscometer Holder, Round
- 355-001-001 White Mineral Oil, 1 Gallon
- 355-001-003 White Mineral Oil, 5 Gallon
- 250-000-120C ASTM 120C Thermometer, 40 °C Test Temperature
- 250-000-121C ASTM 121C Thermometer, 100 °C Test Temperature
