Spesifikasi BZD139 Explosion-Proof Light

Detail BZD139 Explosion-Proof Light

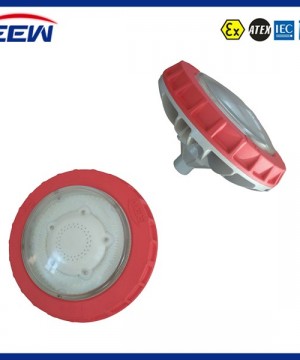

BZD139 Explosion-Proof Light

Application
Designed for Explosive Atmospheres Zone 1 and Zone 2;

Designed for Combustible Dust Zone 21 and Zone 22;

Designed for IIA, IIB and IIC Groups Explosive Atmospheres;

Designed for Temperature Classifications T1~T6;

Designed for Explosive Hazardous Locations Such as Oil Refinery, Storage, Chemical, Pharmaceuticals, Textile, Printing, Military Industries, Etc.



Ordering Refenrences
The Light Fitting is with LED When Delivery, the Lamp Start to Work as Power is Supplied.

Please Select the Products as Per Model Code.

For Example: If Need LED 40W BZD139, and Ceiling Mounting Type, the Model Shall be BZD139-40X.


Tecnical Parameters
Compliance With: GB3836.1, GB3836.2, GB3836.9, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC61241-0, IEC61241-1

Explosion Protection: Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃;

Working Voltage: AC 200~240V, 50/60Hz

Lamp: LED;

Rated Power: 50W, 60W, 80W, 100W, 120W

Luminous Efficiency: >100lm/W;

Power Factor: >0.95;

Color Temperature: 5500K~6500K

Color Rendering Index: Ra>75;

Ingress Protection: IP66;

Corrosion Resistance: WF2

Ambient Temperature: -40℃≤T a ≤+55℃

Cable Entry: G3/4″;

Cable Outer Diameters: Φ9mm~Φ14mm.


Featuters
Enclosure is Die Casted of High-Strength Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;

Transparent Cover is Made from Polycarbonate, Which is of High Transmittance, Impact Resistance and Anti-Aging;

AC-HIV High Voltage Technology, No External Power Supply, Reduce the Power Supply Caused by Electromagnetic Interference and Radiation; Fewer Electronic Components, Relative to the Traditional Power Supply Failure Rate is Further Reduced;

AC-HIV High Pressure Technology, Light Body Light, Equal Power Weight Reduction of More Than 30%.

Set Lightning Protection Module to Meet Bad Weather Conditions.

Steel Pipe Wiring.
