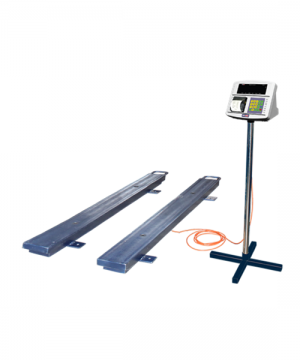

Animal Scale / Timbangan Ternak - MKCells MK-Di02P

Detail Animal Scale / Timbangan Ternak - MKCells MK-Di02P

MKCells MK-Di02P

MKCells MK-Di02P Digital weighing indicator can be used with 1 – 4 SLB-D or digital load cell. It has the function of accumulation and unit switch over and applies to small platform scale, weighbridge and farmers scale.



CHARACTERISTICS AND FUNCTIONS

Plastic housing Clock function : year, month, date, hour, minute, second, auto leap year, leap month Calibration switch code Built in thermal printer : allow single weigh, fixed printing format, not support printing record checkin Support accumulation, clear, unit switching, by function key checking, printing accumulation data, times…etc Support regular shutdown, random code decryption function Input password before calibration and adjusting Auto networking and auto auto-creating weighing scale system Automatic and manual corner-difference adjustment Power on, auto zero-setting range, manual zero-setting range can be set separately, zero tracing range can be set Random charging by indicator RS-232 communication interface, multi communication protocol Encryption function is available while load cell and indicator is communicating Digital load cell SN checking, overload record checking function Equipped with EMC protection

TECHNICAL PARAMETERS : MKCELLS MK-DI02P ANIMAL SCALE



Digital load cell interface RS-485, max transmission distance ≤ 75m Transmission speed rate 19200 bps Digital load cell power supply DC 12V/750mA Digital load cell connection quantity 1 ~ 4 pcs Digital load cell communication protocol MK-SLB-D protocol Display 6 LED digital tube with 1.2 inch red light, 7 state instruction Serial communication interface RS232, 600 ~ 19200 bps optional Indicator power supply AC : Switch power supply 110V ~ 200V/AC, 50Hz Operating temperature 0°C ~ 40°C Humidity : £ 85% (RH) Storage temperature -10°C ~ 60°C Storage Humidity : £ 95% (RH)



SPECIFICATIONS : MKCELLS MK-DI02P ANIMAL SCALE



Platter Size (mm) Capacity (kg) Readability (kg) 1000 x 100 500 0.1 1000 x100 1000 0.1 1000 x 100 2000 0.2
