Digital Indikator Untuk Jembatan Timbang

Detail Digital Indikator Untuk Jembatan Timbang

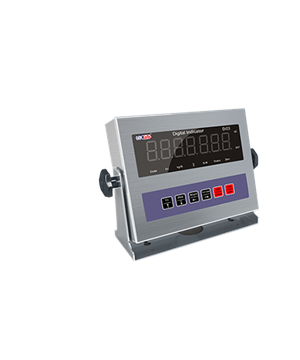

MKCells MK-Di03

MKCells MK-Di03 digital weighing indicator can be used with 1 – 4 SLB-D or digital load cell. It has function of accumulation and unit switch over and applies to small platform scale, weighbridge and farmers scale.



Stainless steel enclosure

Clock function: year, month, date, hour, minute, second, auto leap year, leap month

Calibration switch code

External parallel printer: allow single weigh, fixed printing format, not support printing record checking

Support accumulation, clear, unit switching, by function key checking , printing accumulation data, times…etc

Support regular shutdown, random code decryption function

Input password before calibration and adjusting

Auto networking and auto auto-creating weighing scale system

Automatic and manual corner-difference adjustment

Power on, auto zero-setting range, manual zero-setting range can be set separately, zero tracing range can be set

Random charging by indicator, low power indication and voltage status monitoring

RS232 communication interface, multi communication protocol

Encryption function is available while load cell and indicator is communicating

Digital load cell SN checking, overload record checking function

Scoreboard interface, series port communication port and standard parallel Printer interface,fixed pound printing format

Equipped with EMC protection

Main Technical Parameters Digital load cell interface RS485, max transmission distance £ 75m Transmission speed rate 19200 bps Digital load cell power supply DC 12V/750mA Digital load cell connection quantity 1 ~ 4 pcs Digital load cell communication protocol MK-LUD-P protocol, MK-SLB-D protocol Display 7 LED digital tube with 1.2 inch red light, 7 state instruction Scoreboard interface Current loop serial output, RS232, 600 bps, transmission distance £ 100m Serial communication interface RS232, 600 ~ 19200 bps optional Printer interface Standard parallel print interface, recommend EPSON LQ/300K + II Panasonic KX-P1121/1131, POS 58 printer Indicator power supply AC : Switch power supply 100V ~ 200V/AC, 50Hz

Optional DC : External connection batteries, 12V/DC Operating temperature 0°C ~ 40°C Humidity : £ 85% (RH) Storage temperature -10°C ~ 60°C Storage Humidity : £ 95% (RH) Dimension 293 x 210 x 70mm
