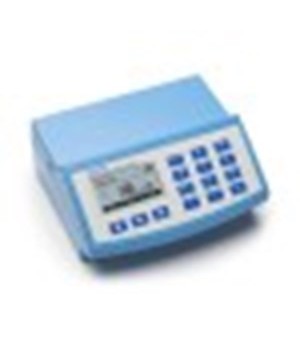

HI83300
Perhatian!
Spesifikasi HI83300
Spesifikasi HI83300
PH Meter
High Efficiency LED Light Source
An LED light source offers superior performance as compared to a tungsten lamp. LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce very little heat, which could otherwise affect the optical components an electronic stability. LEDs are available in a wide array of wavelengths, whereas tungsten lamps are supposed to be white light (all wavelengths of visible light) but actually have a poor blue/violet light output.
High Quality Narrow Band Interference Filters
The narrow band interference filter not only ensure greater wavelength accuracy (+/- 1 nm) but are extremely efficient. The filters used allow up to 95% of the light from the LED to be transmitted as compared to other filters that are only 75% efficient. The higher efficiency allows for a brighter, stronger light source. The end result is higher measurement stability and less wavelength error.
Reference Detector for a Stable Light Source
A beam splitter is used as part of the internal reference system of the HI83300 photometer. The reference detector compensates for any drift due to power fluctuations or ambient temperature changes. Now you can rely on a stable source of light between your blank (zero) measurement and sample measurement.
Large Cuvette Size
The sample cell of the HI83300 fits a round, glass cuvette with a 25 mm path length. Along with the advanced optical components, the larger size of the cuvette greatly reduces errors in rotation from the indexing mark of the cuvettes. The relatively long path length of the sample cuvette allows the light to pass through more of the sample solution, ensuring accurate measurements even in low absorbance samples.
Focusing Lens for Greater Light Yield
Adding a focusing lens to the optical path allows for the collection of all of the light that exits the cuvette and focusing the light on the silicon photo detector. This novel approach to photometric measurements cancels the errors from imperfections and scratches present in the glass cuvette eliminating the need to index the cuvette.
Parameters
*Please note, reagents are not included but can be purchased here.
Parameter | Range | Resolution | Accuracy (at 25 °C) | Method | Wavelength | Reagent Code |
Absorbance | 0.000 to 4.000 Abs | 0.001 Abs | +/-0.003Abs @ 1.000 Abs | |||
Alkalinity | 0 to 500 mg/L (as CaCO3 ) | 1 mg/L | ±5 mg/L ±5% of reading | Colorimetric Method | 610 nm | HI775-26 |
Alkalinity, Marine | 0 to 300 mg/L (as CaCO3 ) | 1 mg/L | ±5 mg/L ±5% of reading | Colorimetric Method | 610 nm | HI755-26 |
Aluminum | 0.00 to 1.00 mg/L (as Al3+) | 0.01 mg/L | ±0.04 mg/L ±4% of reading | Adaptation of the aluminon method. | 525 nm | HI93712-01 |
Ammonia, Low Range | 0.00 to 3.00 mg/L (as NH3 -N) | 0.01 mg/L | ±0.04 mg/L ±4% of reading | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method. | 420 nm | HI93700-01 |
Ammonia, Medium Range | 0.00 to10.00 mg/L (as NH3 -N) | 0.01 mg/L | ±0.05 mg/L ±5% of reading | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method | 420 nm | HI93715-01 |
Ammonia, High Range | 0.0 to 100.0 mg/L (as NH3 -N) | 0.1 mg/L | ±0.5 mg/L ±5% of reading | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method | 420 nm | HI93733-01 |
Bromine | 0.00 to 8.00 mg/L (as Br2 ) | 0.01 mg/L | ±0.08 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method | 525 nm | HI93716-01 |
Calcium | 0 to 400 mg/L (as Ca2+) | 1 mg/L | ±10 mg/L ±5% of reading | Adaptation of the Oxalate method | 466nm | HI937521-01 |
Calclium, Marine | 200 to 600 mg/L (as Ca2+) | 1 mg/L | ±6% of reading | Adaptation of the Zincon method | 610 nm | HI758-26 |
Chloride | 0.0 to 20.0 mg/L (as Cl) | 0.1 mg/L | ±0.5 mg/L ±6% of reading | Adaptation of the mercury(II) thiocyanate method | 466 nm | HI93753-01 |
Chlorine Dioxide | 0.00 to 2.00 mg/L (as ClO2 ) | 0.01 mg/L | ±0.10 mg/L ±5% of reading | Adaptation of the Chlorophenol Red method | 575 nm | HI93738-01 |
Chlorine Dioxide, Rapid Method | 0.00 to 2.00 mg/L (as ClO2 ) | 0.01 mg/L | ±0.10 mg/L ±5% of reading | Adapted from Standard Methods for the Examination of Water and Wastewater,18 ed., 4500 ClO2 D. | 525 nm | HI96779-01 |
Chlorine, Free | 0.00 to 5.00 mg/L (as Cl2 ) | 0.01 mg/L | ±0.03 mg/L ±3% of reading | Adaptation of the EPA DPD method 330.5 | 525 nm | HI93701-01 |
Chlorine, Free Ultra Low Range | 0.000 to 0.500 mg/L (as Cl2 ) | 0.001 mg/ | ±0.020 mg/L ±3% of reading | Adaptation of the Standard Method 4500-Cl G | 525 nm | HI95762-01 |
Chlorine, Total | 0.00 to 5.00 mg/L (as Cl2 ) | 0.01 mg/L | ±0.03 mg/L ±3% of reading | Adaptation of the EPA DPD method 330.5 | 525 nm | HI93711-01 |
Chlorine, Total Ultra Low Range | 0.000 to 0.500 mg/L (as Cl2 ) | 0.001 mg/L | ±0.020 mg/L ±3% of reading | Adaptation of the EPA recommended Method 330.5 | 525 nm | HI95761-01 |
Chlorine, Total Ultra High Range | 0 to 500 mg/L (as Cl2 ) | 1 mg/L | ±3 mg/L ±3% of reading | Adaptation of the Standard Methods for Examination of Water and Wastewater, 20th edition, 4500-Cl | 525 nm | HI95771-01 |
Chromium (VI), Low Range | 0 to 300 µg/L (as Cr(VI)) | 1 µg/L | ±10 µg/L ±4% of reading | Adaptation of the ASTM Manual of Water and Environmental Technology, D1687 Diphenylcarbohydrazide method | 525 nm | HI93749-01 |
Chromium (VI), High Range | 0 to 1000 µg/L (as Cr(VI)) | 1 µg/L | ±5 µg/L ±4% of reading at 25 °C | Adaptation of the ASTM Manual of Water and Environmental Technology, D1687, Diphenylcarbohydrazide method | 525 nm | HI93723-01 |
Color of Water | 0 to 500 PCU (Platinum Cobalt Units) | 1 PCU | ±10 PCU ±5% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Colorimetric Platinum Cobalt method | 420 nm | |
Copper, Low Range | 0.000 to 1.500 mg/L (as Cu) | 0.001 mg/L | ±0.010 mg/L ±5% of reading | Adaptation of the EPA method | 575 nm | HI95747-01 |
Copper, High Range | 0.00 to 5.00 mg/L (as Cu) | 0.01 mg/L | ±0.02 mg/L ±4% of reading | Adaptation of the EPA method | 575 nm | HI93702-01 |
Cyanuric Acid | 0 to 80 mg/L (as CYA) | 1 mg/L | ±1 mg/L ±15% of reading | Adaptation of the turbidimetric method | 525 nm | HI93722-01 |
Fluoride, Low Range | 0.00 to 2.00 mg/L (as F) | 0.01 mg/L | ±0.03 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method | 575 nm | HI93729-01 |
Fluoride, High Range | 0.0 to 20.0 mg/L (as F) | 0.1 mg/L | ±0.5 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method | 575 nm | HI93739-01 |
Hardness, Calcium | 0.00 to 2.70 mg/L (as CaCO3 ) | 0.01 mg/L | ±0.11 mg/L ±5% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method | 525 nm | HI93720-01 |
Hardness, Magensium | 0.00 to 2.00 mg/L (CaCO3 ) | 0.01 mg/L | ±0.11 mg/L ±5% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, EDTA Colorimetric method | 525 nm | HI93719-01 |
Hardness, Total Low Range | 0 to 250 mg/L (as CaCO3 ) | 1 mg/L | ±5 mg/L ±4% of reading | Adaptation of the EPA recommended method 130.1 | 466 nm | HI93735-00 |
Hardness, Total Medium Range | 200 to 500 mg/L (as CaCO3 ) | 1 mg/L | ±7 mg/L ±3% of reading | Adaptation of the EPA recommended method 130.1 | 466 nm | HI93735-01 |
Hardness, Total High Range | 400 to 750 mg/L (as CaCO3 ) | 1 mg/L | ±10 mg/L ±2% of reading | Adaptation of the EPA recommended method 130.1 | 466 nm | HI93735-02 |
Hydrazine | 0 to 400 µg/L (as N2H4 ) | 1 µg/L | ±4% of full scale reading | Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385, p-Dimethylaminobenzaldehyde method | 466 nm | HI93704-01 |
Iodine | 0.0 to 12.5 mg/L (as I2) | 0.1 mg/L | ±0.1 mg/L ±5% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method | 525 nm | HI93718-01 |
Iron, Low Range | 0.000 to 1.600 mg/L (as Fe) | 0.001 mg/L | ±0.010 mg/L ±8% of reading | Adaptation of the TPTZ Method | 575 nm | HI93746-01 |
Iron, High Range | 0.00 to 5.00 mg/L (as Fe) | 0.01 mg/L | ±0.04 mg/L ±2% of reading | Adaptation of the EPA Phenanthroline method 315B, for natural and treated waters | 525 nm | HI93721-01 |
Iron (II) - Ferrous | 0.00 to 6.00 mg/L Fe2+ ) | 0.01 mg/L | ±0.10 mg/L ±2% of reading | Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method | 525 nm | HI96776-01 |
Iron (II & III) – Ferrous & Ferric | 0.00 to 6.00 mg/L Fe | 0.01 mg/L | ±0.10 mg/L ±2% of reading | Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method | 525 nm | HI96777-01 |
Magnesium | 0 to 150 mg/L (as Mg2+) | 1 mg/L | ±5 mg/L ±3% of reading | Adaptation of the Calmagite method | 466 nm | HI937520-01 |
Manganese, Low Range | 0 to 300 µg/L (as Mn) | 1 µg/L | ±10 µg/L ±3% of reading | Adaptation of the PAN Method | 575 nm | HI93748-01 |
Manganese, High Range | 0.0 to 20.0 mg/L (as Mn) | 0.1 mg/L | ±0.2 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method | 525 nm | HI93709-01 |
Molybdenum | 0.0 to 40.0 mg/L (as Mo6+) | 0.1 mg/L | ±0.3 mg/L ±5% of reading | Adaptation of the mercaptoacetic acid method | 420 nm | HI93730-01 |
Nickel, Low Range | 0.000 to 1.000 mg/L (as Ni) | 0.001 mg/L | ±0.010 mg/L ±7% of reading | Adaptation of the PAN method | 575 nm | HI93740-01 |
Nickel, High Range | 0.00 to 7.00 g/L (as Ni) | 0.01 g/L | ±0.07g/L ±4% of reading | Adaptation of the photometric method | 575 nm | HI93726-01 |
Nitrate | 0.0 to 30.0 mg/L (as NO3 - N) | 0.1 mg/L | ±0.5 mg/L ±10% of reading | Adaptation of the cadmium reduction method | 525 nm | HI93728-01 |
Nitrite, Marine Ultra Low Range | 0 to 200 µg/L (as N02-N) | 1 µg/L | ±10 µg/L ±4% of reading | Adaptation of the EPA Diazotization method 354.1 | 466 nm | HI764-25 |
Nitrie, Low Range | 0 to 600 µg/L (as NO2-N) | 1 µg/L | ±20 µg/L ±4% of reading | Adaptation of the EPA Diazotization method 354.1 | 466 nm | HI93707-01 |
Nitrite, High Range | 0 to 150 mg/L (as NO2-) | 1 mg/L | ±4 mg/L ±4% of reading | Adaptation of the Ferrous Sulfate method | 575 nm | HI93708-01 |
Oxygen, Dissolved | 0.0 to 10.0 mg/L (as O2 ) | 0.1 mg/L | ±0.4 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method | 420 nm | HI93732-01 |
Oxygen Scavengers (Carbohydrazide) | 0.00 to 1.50 mg/L (as Carbohydrazide) | 0.01 mg/L | ±0.02 mg/L ±3% of reading | Adaptation of the iron reduction method | 575 nm | HI96773-01 |
Oxygen Scavengers (Diethylhydroxylamine)(DEHA) | 0 to 1000 µg/L (as DEHA) | 1 µg/L | ±5 µg/L ±5% of reading | Adaptation of the iron reduction method | 575 nm | HI96773-01 |
Oxygen Scavengers (Hydroquinone) | 0.00 to 2.50 mg/L (as Hydroquinone) | 0.01 mg/L | ±0.04 mg/L ±3% of reading | Adaptation of the iron reduction method | 575 nm | HI96773-01 |
Oxygen Scavengers (Iso-ascorbic Acid) | 0.00 to 4.50 mg/L (as Iso-ascorbic acid) | 0.01 mg/L | ±0.03 mg/L ±3 % of reading | Adaptation of the iron reduction method | 575 nm | HI96773-01 |
Ozone | 0.00 to 2.00 mg/L (as O3 ) | 0.01 mg/L | ±0.02 mg/L ±3% of reading | Colorimetric DPD Method | 525 nm | HI93757-01 |
pH | 6.5 to 8.5 pH | 0.1 pH | ±0.1 pH | Adaptation of the Phenol Red method | 525 nm | HI93710-01 |
Phosphate, Marine Ultr Low Range | 0 to 200 µg/L (as P) | 1 µg/L | ±5 µg/L ±5% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 20th edition, Ascorbic Acid method | 610 nm | HI736-25 |
Phosphate, Low Range | 0.00 to 2.50 mg/L (as PO4 3-) | 0.01 mg/L | ±0.04 mg/L ±4% of reading | Adaptation of the Ascorbic Acid method | 610 nm | HI93713-01 |
Phosphate, High Range | 0.0 to 30.0 mg/L (as PO4 3-) | 0.1 mg/L | ±1.0 mg/L ±4% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method | 525 nm | HI93717-01 |
Potassium | 0.0 to 20.0 mg/L (as K) | 0.1 mg/L | ±3.0 mg/L ±7% of reading | Adaptation of the Turbidimetric Tetraphenylborate method | 466 nm | HI93750-01 |
Silica, Low Range | 0.00 to 2.00 mg/L (as SiO2 ) | 0.01 mg/L | ±0.03 mg/L ±3% of reading | Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method | 610 nm | HI93705-01 |
Silica, High Range | 0 to 200 mg/L (as SiO2 ) | 1 mg/L | ±1 mg/L ±5% of reading | Adaptation of the USEPA Method 370.1 for drinking, surface and saline waters, domestic and industrial wastes and Standard Method 4500-SiO2 | 466 nm | HI96770-01 |
Silver | 0.000 to 1.000 mg/L (as Ag) | 0.001 mg/L | ±0.020 mg/L ±5% of reading | Adaptation of the PAN method | 575 nm | HI93737-01 |
Sulfate | 0 to 150 mg/L (as SO42-) | 1 mg/L | ±5 mg/L ±3% of reading | Sulfate is precipitated with barium chloride crystals | 466 nm | HI93751-01 |
Surfactants, Anionic | 0.00 to 3.50 mg/L (as SDBS) | 0.01 mg/L | ±0.04 mg/L ±3% of reading | Adaptation of the USEPA method 425.1 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 5540C, Anionic Surfactants as MBAS | 610 nm | HI95769-01 |
Zinc | 0.00 to 3.00 mg/L (as Zn) | 0.01 mg/L | ±0.03 mg/L ±3% of reading | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method | 575 nm | HI93731-01 |
** Reagents for 50 tests.† Unless noted otherwise, all reagent codes ending with -01 are for 100 tests.
General Meter
Wavelength Accuracy | ±1 nm |
---|---|
Light Source | 5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters |
Spectral bandwidth | 8 nm |
Input Channels | 1 pH electrode input and 5 photometer wavelengths |
pH Electrode | digital pH electrode (not included) |
Logging Type | log on demand with user name and sample ID optional input |
Logging Memory | 1000 readings |
Connectivity | USB-A host for flash drive; micro-USB-B for power and computer connectivity |
GLP | calibration data for connected pH electrode |
Display | 128 x 64 pixel LCD with backlight |
Battery Type / Life | 3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement |
Power Supply | 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) |
Environment | 0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing |
Dimensions | 206 x 177 x 97 mm (8.1 x 7.0 x 3.8") |
Weight | 1.0 kg (2.2 lbs.) |
Photometer/Colorimeter Light Detector | silicon photodetector |
Cuvette Type | round, 24.6 mm |
Number of Methods | 128 max. |
Ordering Information | HI83300 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
*Please note, reagents are not included but can be purchased here. |
