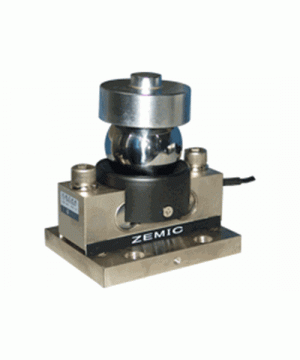

LOADCELL ZEMIC HM9A 30 TON
Gambar Produk
LOADCELL ZEMIC HM9A 30 TON
Update Terakhir
20-06-2019
Dilihat Sebanyak
11 kali
Lokasi
Jawa Tengah - Semarang
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi LOADCELL ZEMIC HM9A 30 TON
Detail LOADCELL ZEMIC HM9A 30 TON
◆HM9A load cells are available in the capacities 10t to 50t.
◆Alloy steel construction, nickel plated,hermetically welded,
oil-proof, waterproof and anti-corrosive gas and medium making
it suitable for all kinds of environments.
◆Dual shear beam, suitable for electronic truck scales,
railway scales and other electronic weighing devices.
Features:
◆Capacity:10t-50t.
◆High accuracy.
◆Alloy steel construction.
◆Easy installation, reliable performance.
Accessories:
Button, steel ball, ball cup,
base plate.
Specifications
Capacity
t
10/15/20/25/30/40/40SE/50
Accuracy
C1
C2
C3
A5M
B10M
Max number of
verification intervals
n max
1000
2000
3000
5000
10000
Mini number of
verification intervals
v min
Emax/3000
Emax/5000
Emax
/10000
Emax
/15000
Emax
/10000
Combined error
(%FS)
≤±0.050
≤±0.030
≤±0.020
≤±0.026
≤±0.050
Creep
(%FS/30min)
≤±0.038
≤±0.024
≤±0.016
≤±0.017
≤±0.040
Temperature effect
on sensitivity
(%FS/10℃)
≤±0.028
≤±0.017
≤±0.011
≤±0.013
≤±0.040
Temperature effect on zero
(%FS/10℃)
≤±0.047
≤±0.023
≤±0.015
≤±0.014
≤±0.020
Output sensitivity
(mv/v)
2.0±0.002
Input resistance
(Ω)
700±3.5
Output resistance
(Ω)
703±3.5
Insulation resistance
(MΩ)
≥ 5000(50VDC)
Zero balance
(%FS)
1.5
Temperature, compensated
(℃)
-10～+40
Temperature,allowed
(℃)
-35～+65
Excitation, Recommended
(V)
5～12(DC)
Excitation,Max
(V)
18(DC)
Safe overload
(%FS)
150
Ultimate overload
(%FS)
300
Outline Dimension mm(inch)
