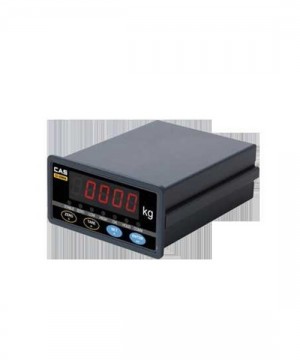

Batching Control System Indikator CAS CI-1580A

Detail Batching Control System Indikator CAS CI-1580A

CAS CI-1580A

FEATURES : CAS CI-1580A INDICATORS

High-visibility LED display Shielded against noise (RFI, EMI) High-speed A/D conversion (200 times/sec) & high display resolution (1/10,000) Watch-dog & self-hardware test function Weight back-up function 2 external relay inputs & 3 external relay outputs Terminal block installed By using DC power, input power can be used in 12~24VDC regardless of polarity (300mA or over is advisable) Simple and prompt Full Digital Calibration Equivalent input mode for Calibration Variety of applications (Platform scale, Truck scale, checking scale, packing scale, tester etc)

OPTIONS : CAS CI-1580A INDICATORS

12 or24 VDC adapter RS-422/485 Analog out (V-out: 0~10V, I-out: 4~20mA)

SPECIFICATIONS : CAS CI-1580A INDICATORS

Load Cell applied voltage DC 10V (±5V) Zero-point Calibration Range – 0.6mV ∼ + 1.5mV Input Sensitivity 0.3㎶ / D Internal Degradability 520,000 Count(19bit) Max/ Signal Input Voltage 32mV Indication Unit 5-digit red high intensity LED (Font size : 12.7(H)x7.3(W)mm Below Zero-point indication “-” A/ D Conversion Speed 200 times / second Temperature used -5℃ ~ +40℃ Product Dimension 100(W) X 125(D) X 52(H) Product Weight Approximately 0.45 Interface Standard RS-232C Option RS-422/485, Analog out(I/V-out)
