Batching Control System Indikator AND AD-4401

Detail Batching Control System Indikator AND AD-4401

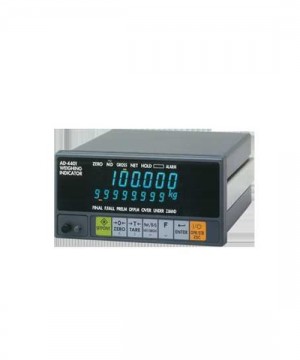

AND AD-4401

FEATURES : AND AD-4401 INDICATORS

100 times/sec. High speed sampling High display resolution to 16,000 counts Up to 1 million counts of A/D resolution Monitor & control weighing and batching with external or internal resolution Fuzzy and Automatic Free Fall Compensation (AFFC) for consistently accurate batching results Enter control set points through front keys or remotely through external thumb wheels Automatics weight and/or count accumulation Sub display provides feedback on all setpoints & simplifies calibration Supplementary flow function assures accurate performance on each batch A host of communications capabilities : RS-232C, RS-422/485, BCD, analog output and standard 4-20mA current loop Connect up to 10 AD-4401’s with A&D’s RS-422/485 Compact DIN size housing speeds installations & reduces space Digital Span Calibration enhances technical support & difficult installations Splash proof front panel and keys (IP65) High sensitivity 0.3µV/d for more accurate measurements Automatic batching and customer programming capability Bright, clear fluorescent displays Hold and peak hold functions User programmed timer settings and alarms, improve operational safety & performance Weigh-in and Loss-in-weigh batching System self-Diagnostics : The most important factor in the installation of any weighing or controlling system is to assure that all cables, I/O connections and options are set up and working correctly. This can be very time consuming and difficult, adding to the expense of the installation. The AD-4401 solves this problem by providing system Self-Diagnostic that can check. Superior Free-Fall Control : The type of material being batched, ambient temperature, flow rate, consistency of the material, and many other factors impact the accuracy of any batching process. The AD-4401 provides two types of free fall compensation which may be selected according to batching inconsistent material, such as sand with stones; honey whose flow rate changes according to ambient temperature; and flour, which is susceptible to sticking to the sides of the discharge gate. High performance A/D converter : New Sigma Delta A/D converter IC provides high speed, high resolution and high sensitivity in a very small package, that saves space, reduces parts and lowers cost.
