Spesifikasi MH100



Spesifikasi MH100

Alat Ukur Ketebalan

Detailed Product Description

Color: Red Weight: 80g
Working Time: 200 Hours Dimensions: 148mm×33mm×28 Mm
Display: High-contrast Segment LCD PC Software: Yes

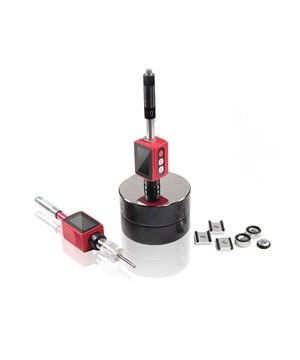

Mitech Portable Hardness Tester MH100 applied different metal materials / Portable Hardness Gauge

Product Overview

MH100 series pocket hardness meters, also known as pen-type hardness tester, based on Leeb hardness measuring principle, quick and easy on-site test the hardness of series metal materials, support free conversion between Richter, Brinell, Rockwell hardness scale and others,integrated compact design, small size, portable, highly integrated, stable and reliable performance, supporting data transfer and print the stored function. Widely used in failure analysis of metal processing and manufacturing, special equipment, permanent assembly, inspection and other fields. Particularly suitable for large parts and non-removable part of the site hardness testing. It is professional precision instrument to improve the pass rate of production and cost savings .

Working Principle

The energy quotient is quoted in the hardness unit HL and is calculated from comparing the impact and rebound velocities of the impact body. It rebounds faster from harder samples than from softer ones, resulting in a greater energy quotient which is defined as 1000×Vr/ Vi.
HL=1000×Vr/ Vi
Where:
HL— Leeb hardness value
Vr — Rebound velocity of the impact body
Vi — Impact velocity of the impact body

Instrument Features

based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic
materials.
High-contrast Segment LCD ,easy to use
Support Steel ,when using D sensor to test steel,it can show HB directly.
Software calibration automatically.
100 groups (impact times 32 ~ 1) hardness measurements, each set of data includes single testing value,average value, measurement date / time, impact direction, frequency, material, hardness, and other information.
Real-time display the remaining battery power, charging progress is displayed while charging.
USB interface to PC for data communication
Data processing software can do transmission measurements, the measured value storage management, statistical analysis of the measured value, the measured value of the print report and batch set the instrument parameters .
Integrated compact design, small size, portable, highly integrated, stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic interference.
Dimension:148mm×33mm×28mm

Model MH660 MH600 MH180 MH320 MH310 MH100
Type Separated Separated Separated Separated Separated Integrated
Outline Color LCD Color LCD Segment LCD Dot matrix LCD Segment LCD Segment LCD
Direction Auto Auto Auto Auto Auto Auto
Calibration

Multi-point and Single-

point Calibration

Multi-point and Single-point Calibration

Single-

point Calibration

Single-

point Calibration

Single-

point Calibration

Single-

point Calibration

Port Bluetooth/USB USB USB USB USB USB
Memory 1000 groups 500 groups 100 groups 500 groups 100 groups 100 groups
Power Two AA size batteries

Two AA size

batteries

TwoAAsize batteries NI-MH Battery NI-MH Battery Li-battery
Print

Optional High speed Thermal

Mini-printer

No No

Integrated High speed Thermal

Mini-printe

Integrated

High speed Thermal

Mini-printe

No
Standby about 300h about 100h about 100h about 100h about 150h about 200h



Harga MH100

 : CALL
