Hot-Wall Retort Furnaces up to 1100 °C NABERTHERM





Inside heating in retort furnaces NRA ../06





Bayonet quick-lock for the retort, also with electric drive as additional equipment





Parallel guided door to open the hot retort furnace as additional equipment



These gas tight retort furnaces are equipped with direct or indirect heating depending on temperature. They are perfectly suited for various heat treatment processes requiring a defined protective or a reaction gas atmosphere. These compact models can also be laid out for heat treatment under vacuum up to 600 °C. The furnace chamber consists of a gas tight retort with water cooling around the door to protect the special sealing. Equipped with the corresponding safety technology, retort furnaces are also suitable for applications under reaction gases, such as hydrogen or, in combination with the IDB package, for inert debinding or for pyrolysis processes.



Different model versions are available depending on the temperature range required for the process:



Models NRA ../06 with Tmax 650 °C

Heating elements located inside the retort

Temperature uniformity up to +/- 5 °C inside the worke space

Retort made of 1.4571

Gas circulation fan in the back of the retort provides for optimal temperature uniformity

Models NRA ../09 with Tmax 950 °C

Outside heating with heating elements around the retort

Temperature uniformity up to +/- 5 °C inside the worke space

Retort made of 1.4841

Fan in the back of the retort provides for optimal temperature uniformity

Models NR ../11 with Tmax 1100 °C

Outside heating with heating elements around the retort

Temperature uniformity up to +/- 5 °C inside the worke space

Retort made of 1.4841

More information GlassProcess Control and documentation



Retort furnace NRA 25/09 Retort furnace NRA 50/09 H2



Vacuum pump for cold evacuation of the retort





Process control H3700 for automatic version



Basic version

Compact housing in frame design with removable stainless steel sheets

Controls and gas supply integrated in the furnace housing

Welded charging supports in the retort or air-baffle box in the furnace with atmosphere circulation

Swivel door hinged on right side with open cooling water system

Depending on furnace volume for 950 °C- and 1100 °C-version the control system is divided in one or more heating zones

Temperature control as furnace control with temperature measurement outside the retort

Gas supply system for one non-flammable protective or reaction gas with flow meter and manual valve

Port for vacuum pump for cold evacuation

Operation under vacuum up to 600  °C with optional single-stage rotary vane pump

Defined application within the constraints of the operating instructions

NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional equipment

Upgrade for other non-flammable gases

Automatic gas injection, including MFC flow controller for alternating volume flow, controlled with process control H3700, H1700

Vacuum pump for evacuating of the retort up to 600  °C, attainable vacuum up to 10-5 mbar subject to selected pump

Cooling system for shortening process times

Heat exchanger with closed-loop cooling water circuit for door cooling

Measuring device for residual oxygen content

Door heating

Temperature control as charge control with temperature measurement inside and outside the retort

Gas inlet with solenoid valve, controlled by the program

Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control

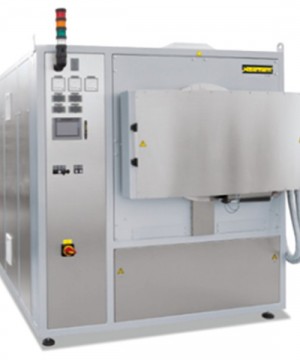

Retort furnace NRA 150/09 with automatic gas injection and process control H3700 Retort furnace NRA 25/06 with gas supply system
