Spesifikasi Fusing Furnaces With Fixed Table NABERTHERM
Detail Fusing Furnaces With Fixed Table NABERTHERM
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :

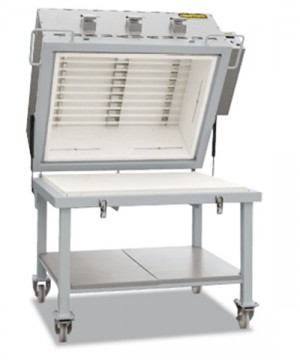

Fusing Furnaces with Fixed Table NABERTHERM
Fusing furnace GF 240
"Combing" in a fusing furnace GF 240
Exhaust air flap as additional equipment
Front made of textured stainless steel
Finished parts out of a fusing furnace
The fusing furnaces in the GF 75 - GF 1425 product line were conceived for professional glass artists. The heating elements, closely arranged, protected in quartz tubes, ensure a very high degree of temperature uniformity during fusing or during bending across the whole table surface. The insulation, made of non-classified fibrous material in the furnace hood and robust lightweight refractory bricks in the furnace floor allow clean and safe operation. High current connection capacities assure that the fusing furnace can be rapidly heated up.
Tmax 950 °C
Heating element, protected in quartz tubes
High current connection capacities for short warm-up times and energy-saving way of working
Arranged closely beside each other on the top, heating elements ensure direct and uniform radiation of the glass
Dual shell hood made of stainless steel with slotted cover lid
Controller integrated to save space on the right side of the furnace
Level table surface with insulation made of robust lightweight refractory bricks and marked charge surface
Hood insulation made of non-classified ceramic fibers for rapid heating up and cooling down
Adjustable, large quick-release fasteners - can be used while working in gloves
Handles on the left and right side of the hood for opening and closing the furnace
Hood safety switch
Solid state relays provide for low-noise operation
Rapid switching cycles result in precise temperature control
Type K thermocouple
Hood easy to open and close, supported by compressed-gas springs
Lockable air inlet opening for ventilation, fast cooling and observation of charge
Robust base on rollers (two of them can be locked down) with tray for glass and tools
Comfortable charging height of 870 mm
Defined application within the constraints of the operating instructions
NTLog for Nabertherm Controller: Recording of process data with USB-flash drive
Fusing furnace GF 600 Fusing furnace GF 75
Model Tmax Inner dimensions in mm Floor space Outer dimensions in mm Heating power Electrical Weight °C w d h in m2 W D H3 in kW4 connection* in kg
GF 75 950 620 620 310 0.38 1100 965 1310 3.6 1-phase 180
GF 75 R 950 620 620 310 0.38 1100 965 1310 5.5 3-phase1 180
GF 190 LE 950 1010 620 400 0.62 1480 965 1400 6.0 1-phase2 245
GF 190 950 1010 620 400 0.62 1480 965 1400 6.4 3-phase1 245
GF 240 950 1010 810 400 0.81 1480 1155 1400 11.0 3-phase 250
GF 380 950 1210 1100 400 1.33 1680 1465 1400 15.0 3-phase 450
GF 420 950 1660 950 400 1.57 2130 1315 1400 18.0 3-phase 500
GF 520 950 1210 1160 400 1.40 1680 1525 1400 15.0 3-phase 550
GF 600 950 2010 1010 400 2.03 2480 1375 1400 22.0 3-phase 600
GF 920 950 2110 1160 400 2.44 2580 1525 1400 26.0 3-phase 850
GF 1050 950 2310 1210 400 2.79 2780 1575 1400 32.0 3-phase 1050
GF 1425 950 2510 1510 400 3.79 2880 1875 1400 32.0 3-phase 1200
