Spesifikasi Glass / Chamber Furnaces Electrically Heated NABERTHERM
Detail Glass / Chamber Furnaces Electrically Heated NABERTHERM
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :
Glass / Chamber Furnaces Electrically Heated NABERTHERM
Chamber furnace N 7/H
These universal chamber furnaces with radiation heating have been specifically designed to withstand heavy-duty use in the heat treatment shop. They are particularly useful for processes such as tool making or for hardening jobs, e.g. annealing, hardening and forging. With help of various accessories, these furnaces can be customized to your application requirements.
Compact, robust design
Three-sides heating: from both side walls and bottom
Heating elements on support tubes ensure free heat radiation and a long service life
Bottom heating protected by heat conducting SiC tiles
Stainless steel upper door jamb protects furnace structure when furnace is opened hot
base frame included in the delivery, N 7/H - N 17/HR designed as table-top model
Exhaust opening in the side of the furnace, or on rear wall of chamber furnace in the N 31/H models and higher
Temperature uniformity up to +/- 10 °C according to DIN 17052-1
Low energy consumption due to multi-layer insulation
Gas spring dampers provide for easy door opening and closing
Heat resistant zinc paint for protection of door and door frame (for model N 81 and larger)
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Model Tmax Inner dimensions in mm Volume Outer dimensions in mm Heating Electrical Weight °C w d h in l W D H power in kW3 connection* in kg
N 7/H1 1280 250 250 140 9 800 650 600 3.0 1-phase 60
N 11/H1 1280 250 350 140 11 800 750 600 3.5 1-phase 70
N 11/HR1 1280 250 350 140 11 800 750 600 5.5 3-phase2 70
N 17/HR1 1280 250 500 140 17 800 900 600 6.4 3-phase2 90
N 31/H 1280 350 350 250 30 1040 1100 1340 15.0 3-phase 210
N 41/H 1280 350 500 250 40 1040 1250 1340 15.0 3-phase 260
N 61/H 1280 350 750 250 60 1040 1500 1340 20.0 3-phase 400
N 87/H 1280 350 1000 250 87 1040 1750 1340 25.0 3-phase 480
N 81 1200 500 750 250 80 1140 1900 1790 20.0 3-phase 820
N 161 1200 550 750 400 160 1180 1930 1980 30.0 3-phase 910
N 321 1200 750 1100 400 320 1400 2270 2040 47.0 3-phase 1300
N 641 1200 1000 1300 500 640 1690 2670 2240 70.0 3-phase 2100
N 81/13 1300 500 750 250 80 1220 1960 1840 22.0 3-phase 900
N 161/13 1300 550 750 400 160 1260 1990 2030 35.0 3-phase 1000
N 321/13 1300 750 1100 400 320 1480 2330 2090 60.0 3-phase 1500
N 641/13 1300 1000 1300 500 640 1770 2730 2290 80.0 3-phase 2500
1Table-top model*Please see page 73 for more information about supply voltage
2Heating only beetween two phases 3Depending on furnace design connected load might be higher

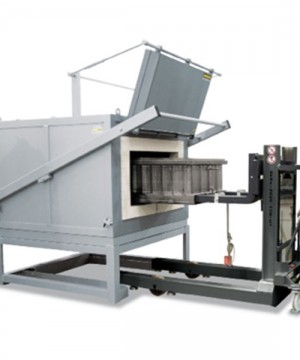

Chamber furnace N 41/H Chamber furnace N 321 with charging stacker
