Spesifikasi Glass / Salt Bath Furnaces For Chemical Hardening Of Glass
Detail Glass / Salt Bath Furnaces For Chemical Hardening Of Glass
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :
Glass / Salt Bath Furnaces for Chemical Hardening of Glass

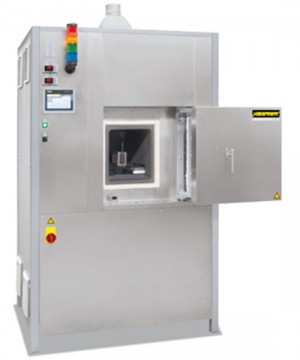

Salt-bath furnace TS 4/50, electrically heated
Insulated cover of the salt-bath
Charging basket
Chemical hardening is mostly applied for the solidification of thin glasses with a thickness of up to 3 mm. Chemical pretensioning is recommended because the surface flatness can be maintained. Producers of copy machines, solar modules, microwave devices, measuring instruments as well as companies in the lighting industry, the automotive industry and other users of flat glass need to apply the toughest possible glass in their products. Nearly all glasses containing a large percentage of sodium can be strengthened by means of ion exchange.
Tmax 500 °C, tailored design possible up to Tmax 1000 °C
Safety technology according to EN 60519-2
Salt-bath furnace in compact design with salt-bath and pre-heated-/cooling chamber above the salt-bath
Bath temperature control
Insulated salt-bath cover
Indirect heating of the preheated chamber from the salt-bath
Automatic, time controlled movement from the preheating chamber into the salt-bath and back
Electrical door lock
Crucible made of hiqh-quality CrNi steel
Over-temperature limiter with manual reset in the furnace chamber to prevent dangerous conditions for the furnace or personnel
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Additional equipment
Hood for connection to local exhaust system
Charging basket according to customers drawing
Active heating for the preheated chamber
Process control and documentation via Nabertherm Control Center (NCC) for monitoring, documentation and control
Model Tmax Inner dimensions crucible in mm Volume Outer dimensions in mm Heating power Electrical Weight °C² w d h in l W D H in kW1 connection* in kg
TS 4/50 500 180 70 100 4 1600 1050 2400 1.2 3-phase 600
TS 8/50 500 300 100 100 8 1600 1050 2400 2.0 3-phase 650
TS 90/50 500 650 300 450 90 1600 1050 2400 20.0 3-phase 700
1Depending on furnace design connected load might be higher *Please see page 73 for more information about supply voltage
2Salt-bath temperature
