Spesifikasi Glass / High-Temperature Furnaces - NABERTHERM
Detail Glass / High-Temperature Furnaces - NABERTHERM
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :
Glass / High-Temperature Furnaces - NABERTHERM
High-Temperature Furnaces with Molybdenum Disilicide Heating Elements with Fiber Insulation up to 1800 °C

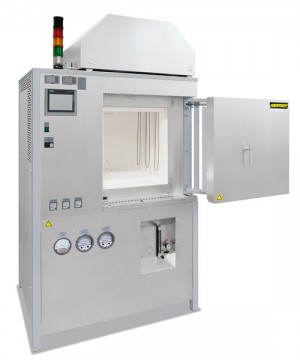

High-temperature furnace HT 16/18 with gas supply system High-temperature furnace HT 160/17 DB200 with debinding package
Protection of heating elements against mechanical damage
Inner process hood with gas injection through the furnace bottom protects the furnace chamber against contamination and/or prevents chemical interaction between the charge and heating elements
High-temperature furnace HT 160/18 DB200 with debinding package and pneumatically driven and parallel lift door
High-temperature furnace HT 64/17 DB100 with debinding package
Fresh air injection through perforated injection tubes with debinding package DB200
Display of pressure and volume flow with debinding package DB200
Two-door design for high-temperature furnaces > HT 276/..
Gas supply system for non-flammable protective or reaction gases
The high-temperature furnaces HT 04/16 - HT 450/18 have proven reliability over many years in laboratory and production. Whether for quartz glass or glass ceramics, for sintering CIM components or for other processes up to a maximum temperature of 1800 °C, these furnaces afford the optimal solution for the sintering process.
High-temperature furnaces can either be insulated with fiber material or lightweight refractory bricks. Furnaces with fiber insulation achieve significantly shorter heating up times because of the low thermal mass. An insulation made of lightweight refractory bricks (see HFL models on page 32), on the other hand, has the advantage of better chemical stability.
These furnaces can also be tailored to specific processes by means of a wide range of additional equipment. The addition of a debinding package, for example, allows the use of these models as combi furnace for debinding and sintering in one process. Thermal or catalytic exhaust cleaning equipment rounds-off the system.
Tmax 1600 °C, 1750 °C or 1800 °C
Recommended working temperature 1750 °C (for models HT ../18), increased wear and tear must be expected in case of working at higher temperatures
Dual shell housing with fan cooling for low shell temperatures
Heating from both sides via molybdenum disilicide heating elements
High-quality fiber insulation backed by special insulation
Side insulation constructed with tongue and groove blocks provides for low heat loss to the outside
Long-life roof insulation with special suspension
Chain-guided parallel swivel door for defined opening and closing of the door
Two-door design (front/back) for high-temperature furnaces > HT 276/..
Labyrinth sealing ensures the least possible temperature loss in the door area
Reinforced floor as protection for fiber insulation as standard from models HT 16/16 upwards
Exhaust air opening in the furnace roof
Heating elements switched via thyristors
Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Model Tmax Inner dimensions in mm Volume Outer dimensions in mm Heating power in Electrical Weight °C w d h in l W D H kW2 connection* in kg
HT 04/16 1600 150 150 150 4 730 490 1400 5.2 3-phase1 150
HT 08/16 1600 150 300 150 8 730 640 1400 8.0 3-phase1 200
HT 16/16 1600 200 300 260 16 810 700 1500 12.0 3-phase1 270
HT 40/16 1600 300 350 350 40 1000 800 1620 12.0 3-phase 380
HT 64/16 1600 400 400 400 64 1130 900 1670 18.0 3-phase 550
HT 128/16 1600 400 800 400 128 1130 1290 1670 26.0 3-phase 750
HT 160/16 1600 500 550 550 160 1250 1050 1900 21.0 3-phase 800
HT 276/16 1600 500 1000 550 276 1300 1600 1900 36.0 3-phase 1100
HT 450/16 1600 500 1150 780 450 1350 1740 2120 64.0 3-phase 1500
HT 04/17 1750 150 150 150 4 730 490 1400 5.2 3-phase1 150
HT 08/17 1750 150 300 150 8 730 640 1400 8.0 3-phase1 200
HT 16/17 1750 200 300 260 16 810 700 1500 12.0 3-phase1 270
HT 40/17 1750 300 350 350 40 1000 800 1620 12.0 3-phase 380
HT 64/17 1750 400 400 400 64 1130 900 1670 18.0 3-phase 550
HT 128/17 1750 400 800 400 128 1130 1290 1670 26.0 3-phase 750
HT 160/17 1750 500 550 550 160 1250 1050 1900 21.0 3-phase 800
HT 276/17 1750 500 1000 550 276 1300 1600 1900 36.0 3-phase 1100
HT 450/17 1750 500 1150 780 450 1350 1740 2120 64.0 3-phase 1500
HT 04/18 1800 150 150 150 4 730 490 1400 5.2 3-phase1 150
HT 08/18 1800 150 300 150 8 730 640 1400 8.0 3-phase1 200
HT 16/18 1800 200 300 260 16 810 700 1500 12.0 3-phase1 270
HT 40/18 1800 300 350 350 40 1000 800 1620 12.0 3-phase 380
HT 64/18 1800 400 400 400 64 1130 900 1670 18.0 3-phase 550
HT 128/18 1800 400 800 400 128 1130 1290 1670 26.0 3-phase 750
HT 160/18 1800 500 550 550 160 1250 1050 1900 21.0 3-phase 800
HT 276/18 1800 500 1000 550 276 1300 1600 1900 42.0 3-phase 1100
HT 450/18 1800 500 1150 780 450 1350 1740 2120 64.0 3-phase 1500
