Spesifikasi Glass / Furnaces With Radiation Heating - NABERTHERM
Detail Glass / Furnaces With Radiation Heating - NABERTHERM
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :
Glass / Furnaces with Radiation Heating - NABERTHERM

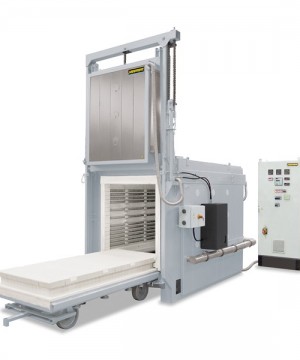

Bogie Hearth Furnaces with Wire Heating up to 1400 °C
Bogie hearth furnace W 1500/H Bogie hearth furnace W 2060/S without bogie heating for preheating fusion molds
Bogie hearth furnace W 2200/14 DB200 with debinding package and catalytical post combustion
Bogie hearth furnace W 8250/S for tempering quartz glass
Bogie hearth furnace W 7500 with bogie, separated in three parts
Bogie hearth furnace in IDB-version with gas box for debinding and sintering under non-flammable protective or reaction gases
When cooling, decorating, glazing or sintering special glass during production, bogie hearth furnaces offer numerous advantages. Due to their very good temperature uniformity, these models are perfectly suited for burning in a separation layer of silicon nitride in crucibles for the solar industry.
Tmax 1280 °C, 1340 °C or 1400 °C
Dual shell housing with rear ventilation, provides for low shell temperatures
Swing door hinged on the right side
Heating from five sides (four sides and bogie) provides for an optimum temperature uniformity
Bogie heating receives power via blade contacts when driven in
Heating elements mounted on support tubes provide for free radiation and long service life
Bottom heating protected by SiC tiles on the bogie providing level stacking surface
Multi-layer insulation consisting of lightweight refractory bricks backed by microporus silica insulation
Self-supporting and long-life ceiling construction with bricks laid in arched construction, for models up to 1340 °C
Roof made of high-quality fiber material for models with Tmax 1400 °C
Freely moveable bogie with rubber wheels up to model W 3300
Adjustable air inlet damper
Manual exhaust air flap on the furnace roof
Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Additional equipment
Fiber insulation also in combination with meander shaped heating for short heating times
Bogies with flanged wheels running on rails for easy and precise movement of high loads or complex kiln furniture
Electric chain-driven bogie in combination with rail operation for smooth movement of heavy loads
Bogie running on steel wheels with gear rack drive, no rails in front of the furnace necessary
Different possibilities for an extension to a bogie hearth furnace system:
Additional bogies
Bogie transfer system with parking rails to exchange bogies running on rails or to connect multiples furnaces
Motor-driven bogies and cross-traversal system
Fully automatic control of the bogie exchange
Electro-hydraulic lift door
Kiln furniture
Motor-driven exhaust air flap
Uncontrolled or controlled cooling system with frequency-controlled cooling fan and motor-driven exhaust air flap
Multi-zone control adapted to the particular furnace provides model for optimal the temperature uniformity
IDB design with gas supply system and safety technology for debinding in non-flammable protective gases
Commissioning of the furnace with test firing and temperature uniformity measurement (also with load) for the purpose of process optimization
Thermal or catalytic exhaust cleaning systems
Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control
Model Tmax Inner dimensions in mm Volume Outer dimensions in mm Heating
power in Electrical Weight °C w d h in l W D H kW1 connection* in kg
W 1000 1280 800 1600 800 1000 1470 2410 1915 57 3-phase 3000
W 1500 1280 900 1900 900 1500 1570 2710 2030 75 3-phase 3500
W 2200 1280 1000 2200 1000 2200 1670 3010 2140 110 3-phase 4500
W 3300 1280 1000 2800 1200 3300 1670 3610 2355 140 3-phase 5300
W 5000 1280 1000 3600 1400 5000 1670 4410 2555 185 3-phase 7300
W 7500 1280 1000 5400 1400 7500 1670 6210 2555 235 3-phase 10300
W 10000 1280 1000 7100 1400 10000 1670 7910 2555 300 3-phase 12500
W 1000/H 1340 800 1600 800 1000 1470 2410 1915 75 3-phase 3500
W 1500/H 1340 900 1900 900 1500 1570 2710 2030 110 3-phase 4000
W 2200/H 1340 1000 2200 1000 2200 1670 3010 2140 140 3-phase 5000
W 3300/H 1340 1000 2800 1200 3300 1670 3610 2355 185 3-phase 6000
W 5000/H 1340 1000 3600 1400 5000 1670 4410 2555 235 3-phase 8000
W 7500/H 1340 1000 5400 1400 7500 1670 6210 2555 370 3-phase 11300
W 10000/H 1340 1000 7100 1400 10000 1670 7910 2555 440 3-phase 13800
W 1000/14 1400 800 1600 800 1000 1470 2410 1915 75 3-phase 3300
W 1500/14 1400 900 1900 900 1500 1570 2710 2030 110 3-phase 3800
W 2200/14 1400 1000 2200 1000 2200 1670 3010 2140 140 3-phase 4800
W 3300/14 1400 1000 2800 1200 3300 1670 3610 2355 185 3-phase 5700
W 5000/14 1400 1000 3600 1400 5000 1670 4410 2555 235 3-phase 7700
W 7500/14 1400 1000 5400 1400 7500 1670 6210 2555 370 3-phase 10900
W 10000/14 1400 1000 7100 1400 10000 1670 7910 2555 440 3-phase 13300
