Spesifikasi Glass / Heat Soak Test Furnaces - NABERTHERM
Detail Glass / Heat Soak Test Furnaces - NABERTHERM
PT. SPEKTRA SURYA UTAMA merupakan distributor alat laboratorium sejak tahun 1992 yang merupakan distributor peralatan, sebagai berikut :

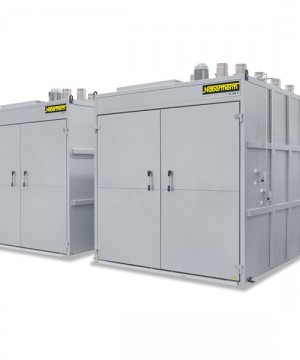

Glass / Heat Soak Test Furnaces - NABERTHERM
Forced Convection Chamber Furnaces, Heat Soak Test Furnaces for Toughened Safety Glass (TSG) Electrically Heated or Gas-Fired
Forced convection chamber furnace N 4010/45 HA Forced convection chamber furnace N 12000/26 HA Forced convection chamber furnaces N 10000/45HA
Forced convection chamber furnace N 2880/60HAS for glass cooling with frame for opening of individual chamber segments
Adjustable air outlets for optimization of the temperature uniformity
Standard version
Tmax 260 °C or 450 °C
Electrically heated or gas-fired
Heating of the electrically heated furnace by means of heater coils
Direct gas-fired or up on request with indirect gas heating with radiation tube, e.g. for heat treatment of aluminum
Optimal air circulation for your charge by means of adjustable air outlets
Horizontal air circulation (type ../HA)
High air exchange for perfect heat transfer
Ground level charging without bottom insulation for 260 °C models
Temperature uniformity up to +/- 5 °C according to DIN 17052-1
Furnace chamber lined with alloy 1.4301 (DIN)
High quality mineral wool insulation provides for low outer temperatures
Inside unlocking device for furnaces with walk-in work space
Furnace sizes suitable for common charging systems, such as pallets, baskets, etc.
Double-wing door for furnaces with an internal width of more than 1500 mm (260 °C and 450 °C models). Furnaces for higher temperatures and with smaller sizes are equipped with a single-wing door.
Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Additional equippment
Optional floor insulation provides for improved temperature uniformity for 260 °C models
Data recording via Nabertherm Control Center (NCC) in accordance with the requirements of EN 14179-1 for Heat Soak Tests of Tempered Safety Glass (TSG)
Racks for loading of standing glass panes
Entry ramps or track cutouts for floor-level charging cart of models with bottom insulation
Furnace positioned on base frame provides for ergonomic charging height
Electro-hydraulic lift door
Fan system for faster cooling with manual or motor-driven control
Motor-driven control of air inlet and exhaust air flaps for better ventilation of the furnace chamber
Observation window and/or furnace chamber lighting
Optimization of the temperature uniformity up to +/- 3 °C according to DIN 17052-1
Safety technology according to EN 1539 for charges containing solvents
Charging systems or roller conveyors, also electrically driven provide for easy charging
Catalytic or thermal exhaust gas cleaning systems
Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control
Model Tmax Inner dimensions in mm Volume Circulation Heating power in kW2 Electrical °C w d h in l rate m3/h 260 °C 450 °C connections*
N 9900/.. A 260 or 450 1500 3000 2200 9900 21500 85 851/100 3-phase
N 17600/.. A 260 or 450 2000 4000 2200 17600 33000 130 1301/145 3-phase
N 41600/.. A 260 or 450 2000 6500 3200 41600 64000 200 2001/230 3-phase
N 1000/.. 260 or 450 1000 1000 1000 1000 3600 15 151 / 36 3-phase
N 1500/.. 260 or 450 1500 1000 1000 1500 3600 18 181 / 36 3-phase
N 1500/..1 260 or 450 1000 1500 1000 1500 3600 18 181 / 36 3-phase
N 2000/.. 260 or 450 1500 1100 1200 2000 6400 18 181 / 42 3-phase
N 2000/..1 260 or 450 1100 1500 1200 2000 6400 18 181 / 42 3-phase
N 2010/.. 260 or 450 1000 1000 2000 2000 7200 24 241 / 48 3-phase
N 2880/.. 260 or 450 1200 1200 2000 2880 7200 48 481 / 60 3-phase
N 4000/.. 260 or 450 1500 2200 1200 4000 9000 42 421 / 60 3-phase
N 4000/..1 260 or 450 2200 1500 1200 4000 9000 42 421 / 60 3-phase
N 4010/.. 260 or 450 1000 2000 2000 4000 12800 48 481 / 60 3-phase
N 4010/..1 260 or 450 2000 1000 2000 4000 12800 48 481 / 60 3-phase
N 4500/.. 260 or 450 1500 1500 2000 4500 12800 48 481 / 60 3-phase
N 5600/.. 260 or 450 1500 2500 1500 5600 12800 60 601 / 84 3-phase
N 6750/.. 260 or 450 1500 3000 1500 6750 19200 90 901 /108 3-phase
N 7200/.. 260 or 450 2000 1500 2400 7200 18000 84 841 /108 3-phase
N 10000/.. 260 or 450 2000 2500 2000 10000 25600 96 961 /120 3-phase
1Reduced connected load for plastics applications *Please see page 73 for more information about supply voltage
2Depending on furnace design connected load might be higher
