Spesifikasi MOTOTRBO SLR8000

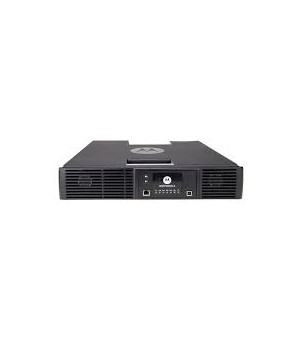

MOTOTRBO™ SLR 8000 REPEATER
MOTOTRBO ™ SLR 8000
base STATION / REPEATER
The SLR 8000 is engineered for high performance,
reliability and flexibility and represents the next generation
in repeaters.
Versatile and powerful, MOTOTRBO combines the best
of two-way radio functionality with the latest digital
technology. It integrates voice and data seamlessly,
offers advanced features that are easy to use and
delivers increased capacity to meet your communication
needs from the field to the factory floor.
For better safety and efficiency throughout your organization, you need reliable voice
and data communications that connect everyone and everything. The MOTOTRBO
SLR 8000 repeater delivers high performance, high reliability two-way radio service,
optimized for your workplace.
Whether you need the simplicity of a single site
conventional system, the coverage of IP Site Connect,
or the powerful trunking capabilities of Capacity Plus,
Capacity Max or Connect Plus, the SLR 8000 delivers the
power of digital two-way radio to your workforce. It can
also operate as an analog repeater (conventional or MPT
1327), or as a mixed mode analog/digital repeater while
you transition away from a legacy analog system.
PAGE 2
PRODUCT DATA SHEET
MOTOTRBO™ SLR 8000 REPEATER
| GENERAL SPECIFICATIONS | ||
| VHF | UHF | |
| Frequency Range | 136-174 MHz | 400-470 MHz |
| Channel Spacing | 25*/ 12.5 kHz | |
| Channel Step Size | 5 Hz | |
| Frequency Stability | 0.5 ppm | |
| Channel Capacity | 64 | |
| RF Output Power | 1-100 W | |
| Dimensions (H x W x D) | 3.5 x 19 x 17.25 in (89 x 483 x 438 mm) | |
| Weight | 31 lbs (14.1 kg) | |
| Input Voltage (AC) | 100-240 Vac, 47-63 Hz | |
| Current (standby), 110 / 240 V | 0.25 / 0.3 A | |
| Current (transmitting at 100 W), 110 / 240 V | 2.1 / 1.1 A (typical) | 2.0 / 1.1 A (typical) |
| Input Voltage (DC) | 12 V (11.0-15.5 V) / 24 V (21.6-32.0 V) | |
| Current (standby), 24 V | 0.5 A | |
| Current (transmitting at 100 W), 24 V | 8.6 A (typical) | 8.2 A (typical) |
| Input Power Modes | AC only, DC only, AC with Battery Revert | |
| Operating Temperature Range | -22 to +140 °F (-30 to +60 °C) | |
| Humidity | RH of 95%, Non-condensing at 50 °C (122 °F) | |
| Max Duty Cycle | 100% | |
| Digital Vocoder Type | AMBE+2™ | |
| Battery Charger Capacity (12 / 24 V) | 5 A | |
| Connectivity, front panel | USB B Receptacle, Microphone (RJ45), Speaker (integrated) | |

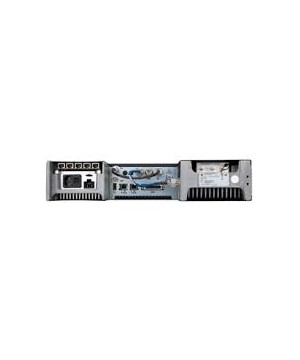

| Connectivity, rear panel | Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female) |
|
| External Reference | 5 / 10 MHz (Auto-detect) | |
| Supported System Types | Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Analog Conventional, Analog Conventional Voting, MPT 1327 |
|
| Audio Types | Input: Balanced (600 ohms and Country-specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port. Output: Balanced (600 ohms and Country-specific Impedances), Unbalanced (600 ohms), Integrated Speaker. |
|
| Audio Levels | Input: Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD. Output: Balanced: +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD. |
|
| FCC Emission Designators | 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W | |
| FCC Type Acceptance | ABZ99FT3095 | ABZ99FT4098 |
| IC Description | 109AB-99FT3095 | 109AB-99FT4098 |
PRODUCT DATA SHEET
MOTOTRBO™ SLR 8000 REPEATER
| TRANSMITTER | ||
| VHF | UHF | |
| Frequency Range | 136-174 MHz | 400-470 MHz |
| RF Output Power | DC (24 V) or AC 1-100 W DC (12 V) 1-50 W |
|
| Max Duty Cycle | 100% | |
| Intermodulation Attenuation | 55 dB | |
| Adjacent Channel Power (TIA603D), 25*/ 12.5 kHz | 75 / 60 dB | |
| Adjacent Channel Power (ETSI), 25* / 12.5 kHz | 75 / 60 dB (78 / 62 dB typical) | |
| Conducted Spurious Emissions | 40 dBm < 1 GHz, -30 dBm > 1 GHz | |
| Audio Response | TIA603D | |
| Audio Distortion | < 3% (<1% typical) | |
| Hum and Noise, 25*/ 12.5 kHz | -50 / -45 dB (-55 / -52 dB typical) | |
| Rated System Deviation, 25* /12.5 kHz | ±5.0 / ±2.5 kHz |
PRODUCT MEETS
• ETSI 300-086
• ETSI 300-113
• TIA/EID603D
• CE Marked
• RoHS2-Compliant
• UL Listed
• Digital Protocol
- ETSI 102 361
• DMR Operation Mode
| Tier II / III
NOTES
* 25 kHz channels not available in the US.
Availability is subject to individual country law and regulations.
All specifications shown are guaranteed unless otherwise stated and are subject to change without notice.
Specifications are for unit excluding options, unless otherwise stated.
| RECEIVER | ||
| VHF | UHF | |
| Frequency Range | 136-174 MHz | 400-470 MHz |
| Sensitivity, 12dB SINAD | 0.3 uV (0.22 uV typical) | |
| Sensitivity, 5% BER | 0.25 uV (0.18 uV typical) | |
| Selectivity (TIA603D), 25* / 12.5 kHz | 83 / 52 dB | 78 / 52 dB |
| Selectivity (TIA603), 25* / 12.5 kHz | 83 / 75 dB | 80 / 75 dB |
| Intermodulation Rejection (TIA603D/ETSI) | 85 / 73 dB (87 / 78 dB typical) | |
| Spurious Rejection (TIA603D/ETSI) | 85 / 75 dB (95 / 90 dB typical) | |
| Audio Distortion | < 3% (<1.5% typical) | |
| Hum and Noise, 25* / 12.5 kHz | -50 / -45 dB (-56 / -52 dB typical) | |
| Blocking | > 110 dB (113 dB typical) |
**Images show product equipped with optional modules
PAGE 3
PAGE 4
The unit has internal monitoring circuitry, allowing you to
measure parameters such as input voltage and current,
output power, module temperatures and VSWR. This
can be accessed through the front panel maintenance
interface, or through a remote management application
such as RDAC.
The standard warranty is 2 years, and can be enhanced
with Service from the Start: a full service support
program that protects your hardware investment with
prioritized expert repair, proactive technical support,
software updates and more.
TOTAL FLEXIBILITY
The SLR 8000 can be customized to suit your operation.
There are options for an internal preselector and
antenna relay module, offering you a true one-box
installation. You can also opt for an internal wireline
card if you need tone control capabilities, 4wire audio
and additional external inputs.
Power can be supplied as 110-240 Vac, 12-24 Vdc, or AC
with battery fallback: there is even a built-in 5 A battery
charger. The 2U unit can be mounted efficiently in a
rack, with no requirement for ventilation space above
or below. And serviceability is improved by the local
voice capability: there is an internal speaker and volume
control, with provision for an external microphone.
MOTOTRBO SLR 8000
With excellent performance, high reliability and a flexible
design in a slim and efficient unit, the SLR 8000 repeater
is at the heart of a top-quality MOTOTRBO professional
two-way radio system.
NEXT GENERATION
MOTOTRBO REPEATER
The SLR 8000 represents a huge leap forward in design
and technology. based on a wealth of field experience,
customer feedback and technological innovation, the
product delivers outstanding performance and reliability
for your business two-way radio system. From an
efficient modular design to flexible installation options,
the SLR 8000 is truly the next generation in repeaters.
HIGH PERFORMANCE
With its 100 W transmitter output and high sensitivity
receiver input, the SLR 8000 delivers radio coverage
to an enormous area. With its excellent performance
characteristics, it is also ideally suited for congested
sites, where tighter specifications are required.
The SLR 8000 supports the full MOTOTRBO feature
set, and is compatible with all the MOTOTRBO system
architectures: single site conventional, IP Site Connect,
Capacity Plus, Capacity Max and Connect Plus. The IP
interface allows you to build applications and consoles
directly into your system.
To help you build your system for top performance,
MOTOTRBO RF Planning and IP Integration Services are
available for purchase.
HIGH RELIABILITY
The SLR 8000 offers round-the-clock reliable operation,
even at its continuous full transmit power of 100W.
The high-quality design has been validated through
Motorola’s Accelerated Life Testing (ALT) program,
and meets stringent quality criteria. The product has a
next-generation receiver design, with high sensitivity and
improved noise blocking, so you can be confident of clear
voice quality, even in the worst conditions.
