Spesifikasi Jual Loadcell MKCELL type MK LS - Murah
Spesifikasi Loadcell MKCELL type MK LS - Murah

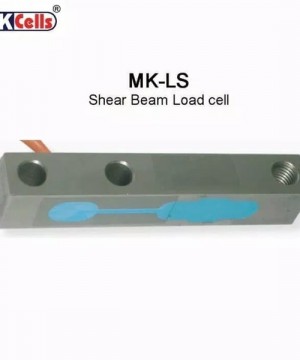

MKCells MK-LS
|
SPECIFICATIONS : Merk : MKCELLS Type : MK-LS Model : SHEAR BEAM |
|||
| Rated Capacities (Emax) | 50, 100, 150, 200, 500kg, 1.5t | Temperature, Compensated | -20°C ~ +40°C |
| Rated Output | 1.6 ± 0.002mV/V (50kg), 1.9 ± 0.002mV/V (150kg), 2.0 ± 0.002mV/V | Temperature, Operating | -40°C ~ +70°C |
| Total Error | ± 0.03% FS, ± 0.05% FS | Maximum Safe Overload | 150% FS |
| Creep Error (30 min) | ± 0.02% FS, ± 0.03% FS | Ultimate Overload | 200% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.02% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.02% FS/10°C | Protection Class | IP67 (50kg-1t), IP68 (5t) |
| Input Resistance | 400 ± 10Ω | Contruction | Nickel plated steel |
| Output Resistance | 352 ± 3Ω | Cable | Length : 3m (50kg-1t), 5m (5t) |
| Insulation Resistance | ≥ 5000MW | Diameter : Φ 5mm (50kg-1t), Φ 6mm (5t), | |
|
FEATURES : MKCELLS MK-LS LOAD CELL |
|
| Low profile shear beam | Small to high capacity available |
| Nickel plated steel with anti corrosive | Easy installation |
| 5 core high quality orange cable | |
