Spesifikasi Jual EBARA CENTRIFUGAL PUMP PUMP PT SARANA TEKNIK JAKARTA
Spesifikasi EBARA CENTRIFUGAL PUMP PUMP PT SARANA TEKNIK JAKARTA

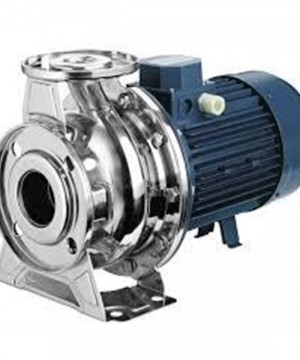

Centrifugal pumps close coupled and standardized
CENTRIFUGAL ELECTRIC PUMPS END SUCTION IN COMPLIANCE WITH EN 733
(FORMER DIN 24255)
End suction centrifugal pumps built in stainless steel AISI 304
(3 Series) and AISI 316L (3L Series)
CLICK HERE TO SEE THE VIDEO
APPLICATIONS
• Water supply to civil, agricultural and industrial plants
• Pressure boosting
• Fire-fighting, heating systems and air-conditioning
• Moving industrial liquids
• Irrigation
• Refrigeration towers
• Swimming pools
• Emptying
• Washing plants
TECHNICAL DETAILS
• Can also work in vertical position
• Highly resistant contruction
• Hydroforming process EBARA patent
PUMP TECHNICAL DATA
• Maximum working pressure: 10 bar
• Maximum temperature of the liquid:
-10°C ÷ +90°C
-10°C ÷ +110°C (L-H-HS-HW-HSW versions)
-20°C ÷ +120°C (E-ES version)
• MEI >0,4
For further information please see our Data Book on the web site www.
ebaraeurope.com
MOTOR TECHNICAL DATA
• High efficiency IE2 motors starting from 0,75kW up to 5,5kW (for 3(L)M)
• High efficiency IE3 motors starting from 7,5kW up to 22kW (for 3(L)M)
• High efficiency IE3 motors starting from 0,75kW up to 55kW (for 3(L)S and 3(L)P)
• Self-ventilated 2 and 4 poles asynchronous motor
• Class of insulation F (B for high temperatures)
• IP 55 protection degree
• 230V ±10%, 50Hz single phase voltage,
three phase voltage 220-240/380-415V ± 5% (up to 0,55kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (from 0,75kW to 4kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (up to 4kW included), 50Hz for the other models
three phase voltage 400/690V ±10% (from 5,5kW and over), 50Hz
• Protection is user's responsibility
MATERIALS
• Pump casing and seal housing disc:
- AISI 304 per 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- AISI 316L for 3L Serie 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- AISI 316 microcasted for 3L Series 65-250
80-160/200/250
• Impeller in:
- AISI 304 for 3 Series 32-125/160/200
40-125/160/200
50-125/160
- AISI 316L for 3L Series 32-125/160/200
40-125/160/200
50-125/160
- AISI 316 microcasted for 3 SERIES 65-125/160/200
3L SERIES 65-125/160/200
65-250
80-160/200/250
• Standard mechanical seal:
- Carbon/Ceramic/NBR for 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- SiC/SiC/FPM for 3L Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200/250
80-160/200/250
- Special mechanical available on request
Sarana Teknik Pump
PT. Sarana Teknik Authorized Distributor Pump Pompa Industri, Sun Pump, Centrifugal Submersible Pump, Horizontal Pump, Gear Pump, dll.
PT. Sarana Teknik Authorized Distributor Bardor Electric ABB Motor Group
PT. Sarana Teknik Authorized Distributor Dodge Bearing Coupling Reducer Products
PT. Sarana Teknik Authorized Distributor Tsubaki Chain, Sprocket, Chain Coupling, Power Lock, Cam Cluth, Backstop, Power Cylinder products
PT. Sarana Teknik Agents Westcar Transfluid Trasmission Industrial Fluid Coupling
PT. Sarana Teknik Authorized Distributor Rexnord Omega Coupling, Viva Coupling, Bearing, Disk Coupling
PT. Sarana Teknik Authorized Distributor Falk Streelflex Grid Coupling, Gear Coupling, Wrapflex Coupling, Reducer
PT. Sarana Teknik Authorized Distributor Addax CT Disk Coupling Composite Coupling, Pillow Block Bearing
PT. Sarana Teknik Authorized Distributor Omega Motori Gear Motor Reducer & Vibrator
PT. Sarana Teknik berdiri tahun 1998 Telah Didedikasikan Untuk Memecahkan Masalah-Masalah pompa Industri dan segala pendukungnya, didukung Oleh Engineer Yang Sangat Ahli dibidangnya siap Memberikan Bantuan Teknis Kepada Pelanggan.
PT. Sarana Teknik Akan Selalu Berusaha Untuk Menjadi Ramah, Membantu, Berpengetahuan, Dan Efisien. Kembali Oleh Prinsipal Terkemuka Iso Dari Luar Negeri. Kami Telah Mempertahankan Tingkat Tertinggi Pengetahuan Tentang Semua Produk Kami.
