Spesifikasi Jual Fusion Splicer Tumtec FST 16H # FO Tumtec # Splicing

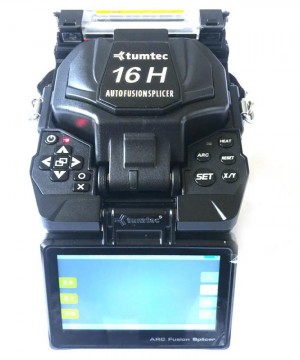

FTTH clad fusion splicer FST-16H
V-groove cladding alignment, high quality and low splicing loss;
Auto splice mode manifest user-friendly design;
Dust-proof, water-proof, high temperature resistance, adapting to various altitude and formidable nature conditions;
4.3” high resolution LCD touch screen with 380X magnification, visible clearly with bare eyes;
Packed with detachable 4800mAh battery, more than 180 times of splicing and heating;
High power LED light simplifies night work;
None-mirror design reduce maintenance work;
3-in-1 fiber clamp suitable for all fiber types;
Specification
| Size: | W*L*H 140*165*138mm |
| Weight: | 1.735KG(including battery) |
| Fiber cores: | single fiber |
| Applied fiber category: | SM/MM/DS/NZDS |
| Diameter of fiber: | 0.25-3.0mm/indoor cable |
| Fiber placed&cleaved length: | coating diameter 0.125-1mm/cleave length: 8-16mm |
| Splicing mode: | multiple splicing modes |
| Typical splicing loss: | 0.01-0.05dB |
| Return loss: | ≥60dB |
| Lighting: | 3 high-power LED white light |
| Splicing time: | 6-10s |
| Estimated splice loss: | yes |
| Splicing length: | 20-60mm |
| Heating time: | multiple heating modes/typical heating time 15-30s |
| Results storage: | 2000 lastest records |
| Tension test: | 1.5-2.0N |
| Operating condition: | altitude 0-5000m, relative humidity 0-95%, -10~50ºC, 15m/s max wind speed |
| Storage condition: | relative humidity 0-95%, -40~80ºC |
| Display: | 90° bi-directional view, 4.3′ high resolution color LCD touch screen |
| Fiber view & magnification | X,Y,X/Y,double click 500 times magnification |
| Power supply: | AC 100-240V, DC 12-15V |
| Battery capacity: | 4800mAh |
| Heating time: | typical heating about 180 times |
| Operating method: | button/touch screen |
| Adaptive discharge: | automatic ARC calibration by air pressure and temperature |
| Electrode life: | 3000 ARCS |
| Terminal: | Mini USB2.0 |
Standard configuration
Host machine FST-16H 1pc
Carrying case XT02 1pc
Fiber cleaver / 1pc
Alcohol bottle / 1pc
Battery TPW-42 1pc
Cooling tray TP01 1pc
Spare electrode E1 1 pair
Carrying Straps / 1pc
Adapter TPA150300 1pc
Test report / 1pc
power cable / 1pc
User Manual / 1pc
Fiber stripper(optional) CFS-2 1pc
Cleaning kitbag (optional) / 1pc
Cable stripper(optional) WX-1101 1pc
