AD-8000 PH/ORP/COND/TDS/TEMP BENCH METER

 AD-8000  PH/ORP/COND/TDS/TEMP  BENCH METER
Made in Adwa Instrument - Hungary

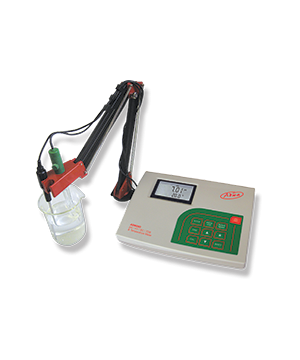

AD8000 is a microprocessor-based pH, ORP, conductivity, TDS and temperature bench meter. Relative mV feature is also provided. The autoranging feature of the Conductivity and TDS ranges automatically sets the instrument to the scale with the highest resolution.

pH measurements are compensated for temperature effect automatically (ATC) using AD7662 temperature probe, while the EC readings can be compensated automatically (ATC) using the conductivity probe with built-in temperature sensor or manually (MTC). It is also possible to disable the temperature compensation and measure the actual conductivity.

The temperature coefficient is user selectable. The pH calibration can be performed at 1, 2 or 3 points with five memorized buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01). In addition, AD8000 is provided with calibration timeout alarm, GLP feature to view last calibration data and automatic HOLD feature to freeze the first stable reading on the LCD.

Supplied complete with AD1131B refillable pH electrode with glass body with BNC connector and 1 m cable, AD76309 conductivity probe with built-in temperature sensor and 1 m cable, AD7662 stainless steel temperature probe with 1 m cable, pH 4.01 and pH 7.01 calibration buffers (20 ml sachet each), EC calibration solutions at 1413 μS/cm and 12.88 mS/cm (20 ml sachet each), 12 Vdc power adapter and user manual.

Specifications


Range	PH	-2.00 to 16.00 C /-2.000 to 16.000
	ORP	±699.9 mV / ±2000 mV
	COND	0.00 to 19.99 μS/cm; 0.00 to 9.99 ppm
		20.0 to 199.9 μS/ cm; 10.0 to 99.9 ppm
		200 to 1999 μS/cm; 100 to 999 ppm
	TDS	2.00 to 19.99 mS/cm; 1.00 to 9.99 ppt
		20.0 to 199.9 mS/cm; 10.0 to 99.9 ppt
Temperature	PH	-9.9 to 120.0°C
	COND	0.0 to 100.0°C
Resolution	PH	0.01 pH / 0.001
	ORP	0.1 mV (±699.9 mV) / 1 mV (±2000 mV)
	COND	0.01, 0.1, 1 μS/cm; ppm
	TDS	0.01, 0.1 mS/cm; ppt
	Temp	0.1°C
Accuracy  @ 25oC	PH	± 0.01 pH / ± 0.002
	ORP	± 0.2 mV up to ± 699.9 mV
		± 1 mV up to ± 2000 mV
	COND/TDS	± 1% f.s
	Temp	± 0.5°C
Relative mV offset range		± 2000 mV
pH Calibration		Up to 3-point calibration,
		5 buffer available (4.01, 6.86, 7.01, 9.18, 10.01 pH)
EC Calibration		Offset at 0.00 μS/cm; Slope at 1 point with 6 memorized values
		(84.0, 1413 μS/cm; 5.00, 12.88, 80.0, 111.8 mS/cm) or with custom value
Temperature Compensation		Automatic or manual
		-9.9 to 120.0°C (pH range)  B30:C310.0 to 100.0°C (EC range)
Temperature Coefficient (EC)		0.00 to 10.00%/°C   (default: 1.90%/°C)
TDS Factor		Selectable from 0.40 to 1.00  (default value: 0.50)
Sensors	PH	AD1131B
	EC	AD76309  with built-in temperature sensor
Power supply		12 Vdc power adapter
Dimenions		230 x 180 x 50 mm
Weight		1800 g
Environment		0 to 50°C  RH max. 95% non-condensing
