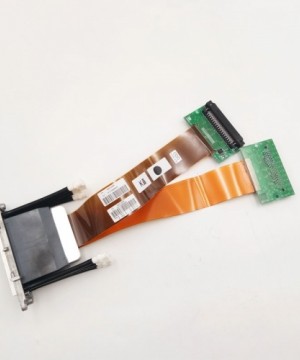

Mimaki TS500-1800 Gen5 Printhead Assy Type-D M014140 INDOFASTPRINT STORE

Update Terakhir
01-07-2020
Minimum Pembelian
1 Unit
Dilihat Sebanyak
23 kali
Lokasi
Sumatera Utara - Medan
Harga
Rp. 1.115
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Mimaki TS500-1800 Gen5 Printhead Assy Type-D M014140 INDOFASTPRINT STORE

 This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.


Printer Compatibility:  Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M014140

Specifications:
Model: PRH-MIM-006
Head materials: SST, Nickel alloy, Epoxy Adhesive
Number of nozzles: Four 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Nozzle plate surface: Coated SST
Piezo type: D33 Stacked PZT
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Life: 100 billion actuations per nozzle
Dimensions: 89 x 25 x 69 mm (not include cables)

Remarks: Original

  • Availability:In Stock
  • Model:Mimaki TS500-1800 Gen5 Printhead Assy Type-D M014140
  • Manufacturer:Mimaki


INDOFASTPRINT is a company engaged in the field of printers and its equipment.
Cooperating with brands Spectra, Epson, Mutoh, Roland, Mimaki, Cannon, HP, Xaar, Seiko, Toshiba, Vutek, Ricoh, Kyocera, Konica, Dimatix.
Now we have expanded the sales market to international markets by presenting online purchases on our online store website indofastprint.com/store.
Present to meet the growing demand for machine printers and parts and accessories. With complete equipment and full support from the manufacturer, INDOFASTPRINT is committed to selling and delivering only high quality products at competitive prices. In addition to distributing goods, we will also provide technical support and solutions.
INDOFASTPRINT has been created to utilize current day technologies to give you one of the most efficient and cost effective ways to order your goods. Our staff have the experience and understanding to give you the kind of customer service.to facilitate customers in consulting and buying goods

INDOFASTPRINT provide a 100% money back guarantee.
Location INDOFASTPRINT : Jl.Sampali No.100 B Pandau Hulu II Medan Sumatera Utara 20233, Indonesia
For information, please visit our company website at : www.indofastprint.com/store/
