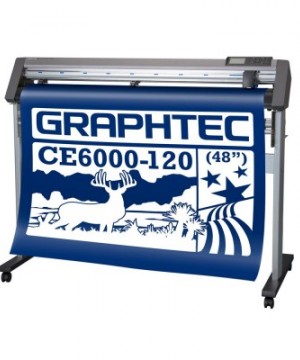

Graphtec CE6000-120 (48″) (MITRAPRINT)

Update Terakhir
04-10-2021
Minimum Pembelian
1 Unit
Dilihat Sebanyak
9 kali
Lokasi
Sumatera Utara - Medan
Harga
Rp. 22.800.000
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Graphtec CE6000-120 (48″) (MITRAPRINT)

 Price : USD 1600
Min Order : 1 Pcs
Lead Time : 3 – 5 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Paypal, Money Gram
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock
Address : Jl. S. Parman No.211
Medan,Sumatera Utara 20112
IndonesiaCity/Zip Code : Medan, 20112
Province : Sumatera Utara
Country : INDONESIA

order@mitraprint.com

Visit our site to see more cataloq and discount price : https://mitraprint.com
DHL/Fedex : 100% satisfied with the creativity of the box design
Kualanamu International Airport

The CE6000 are Graphtec’s professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.

  • Includes Graphtec ARMS (Advanced Registration Mark Sensor)
  • Contour Cut Pre-Printed Graphics
  • Up to 300 & 450* grams of force
  • Tangential Emulation
  • 1 Table top, desktop Size (15″)
  • 2 Included Stand Sizes (24″ and 48″)



Cutting plotter CE6000 series, Price Performance Leader

The CE6000 series sets the standard for high performance, low cost cutting plotters. It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE6000 series improve your work efficiency and increases productivity.



Specifications

Item CE6000-40 CE6000-60 CE6000-120 CE6000-120-AMO
CPU 32-bit CPU
Configuration Grit rolling type, digital servo drive
Max. cutting area
(Guaranteed cutting area)
375 mm x 50 m *1
(356 mm x 2 m *1)
603 mm x 50 m *1
(584 mm x 5 m *1)
1213 mm x 50 m *1
(1194 mm x 5 m *1)
Mark scanning margin Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm
Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller 2 rollers 2 rollers 4 rollers 4 rollers
Max. cutting speed 600 mm/s (All directions) 900 mm/s (at 45º direction) 1000 mm/s (at 45º direction)
Max. acceleration 21.2 m/s2 (at 45º direction) 13.9 m/s2 (at 45º direction)
Max. cutting force
(Instantaneous max. force)
2.94 N (300 gf) in 31 steps
(3.2 N (330 gf))
4.41 N (450 gf) in 38 steps
(4.9 N (500 gf))
4.41 N (450 gf) in 38 steps
(4.9 N (500 gf))
Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and type of media)
Repeatability Max. 0.1 mm in plot up to 2 m *1
Mountable number of tools 1 tool
Blade type Supersteel
Pen type Oil-based ballpoint, Water-based fiber-tip pen
Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness
Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cutting Yes (performed by force control)
Interface RS-232C / USB2.0 (High Speed)
Buffer memory 2 MB
Command sets GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect)
Display Graphic type LCD with backlight (240dots x 128dots)
Registration mark sensing system Scans the mark by optical sensor (ARMS5.0)
Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption 120 VA
Operating environment
(Guaranteed accuracy)
10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
(16 to 32 ºC, 35 to 70 % R.H. (non-condensing))
External dimensions (W x D x H, Approx. [mm]) 672 x 338 x 266 900 x 593 x 1046 1541 x 736 x 1250
Weight 10.5 kg 21 kg (including stand) 40.5 kg (including stand)
Included software *2 Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller
Compatible OS *2 Windows 10 / 8.1 / 8 / 7 / Vista , Mac OS 10.6 to 10.10
Compatible Standards Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A
