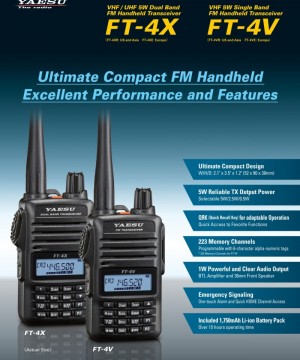

YAESU FT-4V VHF 5W Single Band FM Handheld Transceiver

YAESU FT-4V VHF 5W Single Band FM Handheld Transceiver

============================================================

The FT-4V are Ultimate compact, ruggedly constructed FM transceivers with an oversized front speaker that provides a full 1 watt of crisp, clear high quality audio output. They are packed with excellent performance and valuable features demanded by discriminating Radio operators.

Features

·         Ultimate Compact Design, Measuring W52 x H90 x D30mm

·         5 Watts of Reliable RF Power within an ultra-compact body

·         Three Selectable TX Power settings : 5W(High)/2.5W(Middle)/0.5W(Low)

·         One Watt Powerful Audio Output and Clear Audio from the 36mm Front Speaker

·         QRK (Quick Recall Keys) Two User Programmable Keys for direct Access to favorite functions

·         222 Memory Channels : 200 basic memories, 2 Home-channels and 10 sets of PMS memory channels

·         The Channel TAGs are programmable with 6 alpha-numeric characters for easy recognition

·         Over 15 hours Operating time with Supplied 1,750mAh Li-ion Battery pack

·         3.5-Hour Rapid Charger (SBH-22) Included (With SBR-28LI)

·         One-touch Alarm and Quick Home Channel Access for Emergency Signaling

·         Versatile Scanning Capabilities : VFO Scan, Memory Scan, Programmable Memory Scan (PMS), Memory Bank Scan and Dual Receive

·         WX Channels with “Severe Weather” alert

·         VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)

·         PC Programmable with Optional Programming Cable (SCU-35)

·         Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)

·         FM Broadcast Receiver Equipped

·         ARTS (Automatic Range Transponder System) function

·         DTMF Operation

·         CTCSS/DCS Operation

·         Busy Channel Lock Out (BCLO)

·         Battery Saver function

·         Automatic Power Off (APO) feature

·         Transmitter Time Out Timer (TOT)

============================================================

Specifications

GENERAL

Frequency Range :

- RX : 136 – 174MHz

- TX : 136 – 174MHz

- FM Broadcast : 65 – 108MHz

Channel Steps : 5/10/12.5/15/20/25/50/100kHz

Frequency Stability : ±2.5ppm -10°C to +60°C

Emission Type : F2D, F3E, F2A

Antenna Impedance : 50 Ohms

Supply Voltage : Nominal : 7.4V DC, Negative Ground

Current Consumption :

- 190mA (Receive) 200mW Output

- 95mA (Standby, Saver Off)

- 23mA (Standby, Saver On)

- 5mA (Auto Power Off)

- 1.5A (5W TX, 144MHz) 7.4V DC

Operating Temperature : -20°C to +60°C

Case Size : 52 (W) x 90 (H) x 30 (D) mm, without Knob and Antenna

Weight (Approx.) : 250g with SBR-28LI and Antenna

Included : Li-ion battery 7.4V 1,750mAH (SBR-28LI), Rapid Charge (SB-22), AC Adapter (SAD-20), Belt Clip (SHB-18), Antenna

TRANSMITTER

RF Power Output : 5W (High) / 2.5W (Middle) / 0.5 (Low) @ 7.4V with SBR-28LI

Modulation Type : Variable Reactance

Maximum Deviation : ±5.0kHz

Spurious Emission :

- At least 60dB down (@ High and Middle power)

- At least 50dB down (@ Low Power)

Microphone Impedance : 2k Ohms

RECEIVER

Circuit Type : Direct-Conversion

Sensitivity : 0.2µV for 12dB SINAD (140 – 150MHz, NFM)

Selectivity : 12kHz / 35kHz (-6dB/-60dB)

AF Output : MAX Power 1W @ 16 Ohms, 0.8W @ 16 Ohms for 10% THD

===========================================================
