Spesifikasi GW Instek GDS-210 100MHz, 2-Channels, Handheld Digital Storage Oscilloscopes

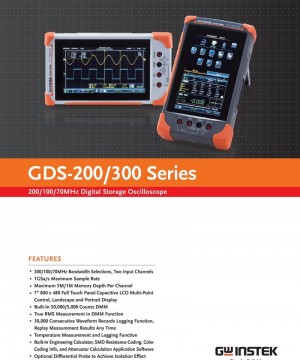

GW Instek GDS-210 100MHz Handheld Digital Storage Oscilloscopes
============================================================
Features
• 100MHz Handheld Oscilloscope
• 2 Input Channels
• 1GSa/s Maximum Sampling rate
• Maximum 5M Memory Depth Per Channel
• 7” 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display
• Built-In 50,000/ 5,000 Counts DMM
• True RMS measurement in DMM function
• 30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time
• Temperature Measurement and Logging Function
• Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
============================================================
Specifications
Channels : 2 (BNC-Shield)
Input Impedance : 1MΩ±2%, 16.5pf approx.
Maximum Input : CAT II 300VRMS
Input Coupling : AC, DC, GND
Bandwidth : DC-100MHz (-3dB)
Rise Time : 3.5ns
Sensitivity : 2mV/div - 10V/div (1-2-5 increments)
Accuracy : ±(3% x Readout + 0.1 div + 1mV)
Bandwidth Limit : 20MHz(-3dB)
Polarity : Normal, Invert
Realtime Sample Rate : 1Gsa/s
Memory Depth : 1M points per ch
Display : 7 inch 480 x 800 Capacitive Touchscreen
Interface : USB, Internal 120MB
Power Source : AC 100V – 240V, 48Hz – 63Hz, Power Consumption 40W
DC Output L 12V/3A, Double Shield
Dimensions (WxHxD) : 136 x 240 x 59.7 mm
Weight : Approx. 1.5 kg
Accessories : User Manual CD x 1, Power Code x 1, GTP-2 150B-2 150MHz Probe. Suitable for GDS-310/210, GTL-207 Multimeter Test Lead x 2, GSC-010 Soft Carrying Case, GSC-011 Soft Carrying Bag, GAP-001 AC-DC Adaptor, GWS-001 Wrist Strap
===========================================================
