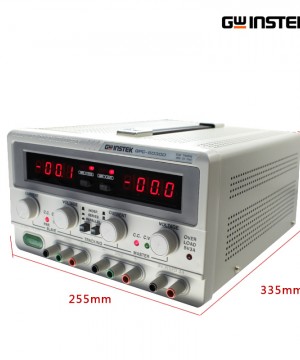

GW Instek GPC-6030D Triple Output Linear 375W D.C. Power Supply
Perhatian!
Spesifikasi GW Instek GPC-6030D Triple Output Linear 375W D.C. Power Supply
GW Instek GPC-6030D Triple Output Linear 375W D.C. Power Supply
============================================================
Features
· Triple Output
· Auto Tracking
· Auto Series and Parallel Operation
· Constant Voltage and Constant Current Operation
· Low Ripple and Noise
· Internal Select for Continuous or Dynamic Load
· Overload and Reverse Polarity Protection
· 3 1/2 Digits 0.5" LED Display
· 5V, 3A Fixed Output
============================================================
Specifications
Output Watt : 375W
DC Channel Output :
*CH1/CH2 : 0 – 60V/0 – 3A
*CH3 : 5V/3A Max
Operating Mode :
*Independent : Two independent outputs and 5V fixed output; Output from 0 to rating volts and 0 to rating amperes
*CH1/CH2 Series : Output from 0 to rating volts at rating amperes each; Output from 0 to double rating volts at rating amperes
*CH1/CH2 Parallel : Output from 0 to double rating amperes at rating volts
Constant Voltage Operation :
*Line Regulation : ≦0.01%+3mV
*Load Regulation : ≦0.01% + 3mV (rating current ≦3A); ≦0.01% + 5mV (rating current ≦10A); ≦0.02% + 5mV (rating current ≧10A)
*Ripple & Noise : ≦1mVrms 5Hz - 1MHz
*Recovery Time : ≦100μS (50% load change, minimum load 0.5A)
Constant Current Operation :
*Regulation : Line regulation ≦0.2% + 3mA; Load regulation 0.2% + 5mA
*Ripple Current : ≦3mArms
5V Fixed Output :
*Regulation : Line regulation ≦5mV; Load regulation ≦10mV
*Ripple & Noise : ≦2mVrms
*Voltage Accuracy : 5V±0.25V
*Output Current : 3A
Tracking Operation :
*Tracking Error : ≦0.5% + 10mV of the master
*Series Regulation : ≦300mV
Display :
*Type : 3 1/2 digits 0.5" LED display
*Accuracy : ±(0.5% of rdg + 2 digits)
Insulation :
*Chassis and Terminal : 100MΩ or above (DC 1000V)
*Chassis and AC Cord : 100MΩ or above (DC 1000V)
General :
*Line in Power Supply : AC 100V/120V/220V/240V ±10%, 50/60Hz
*Dimensions & Weight : 255(W) x 145(H) x 420(D) mm
Accessories : User manual x 1 , Power cord x 1, Test lead GTL-105A x 1 (3A) or GTL-104A x 2 (10A)
===========================================================
