GW Instek GPD-2302S 2-Channels, 180W Programmable Linear DC Power Supply
Perhatian!

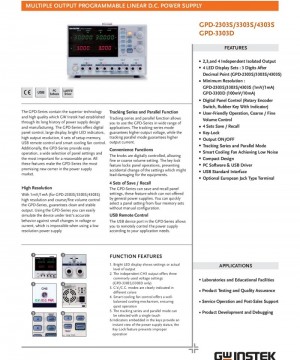

Spesifikasi GW Instek GPD-2302S 2-Channels, 180W Programmable Linear DC Power Supply
GW Instek GPD-2302S 2-Channels, 180W Programmable Linear DC Power Supply
============================================================
Features
· 2, 3,and 4 Independent Isolated Output
· 4 LED Display Sets : 3 Digits After Decimal Point
· Minimum Resolution : 1mV/1mA
· Digital Panel Control (Rotary Encoder Switch, Rubber Key With Indicator)
· User-Friendly Operation, Coarse / Fine Volume Control
· 4 Sets Save / Recall
· Key-Lock
· Output ON/OFF
· Tracking Series and Parallel Mode
· Smart Cooling Fan Achieving Low Noise
· Compact Design
· PC Software & USB Driver
· USB Standard Interface
============================================================
Specifications
Output Channel :
*Voltage : 0 – 30V (CH1 & CH2)
*Current : 0 – 3A (CH1 & CH2)
Constant Voltage Operation :
*Regulation : Line regulation ≤0.01%+3mV; Load regulation ≤0.01%+3mV(rating current ≤3A); ≤0.02%+5mV(rating current >3A)
*Ripple & Noise : ≤ 1mVrms (5Hz~1MHz)
Constant Current Operation :
*Regulation : Line regulation ≤0.2%+3mA, Load regulation ≤0.2%+3mA
*Ripple Current : ≤ 3mArms
Display :
*Voltage : 5 digits 0.4" LED Display (full scale:32V)
*Current : 4 digits 0.4" LED Display (full scale:3.2A)
Key Lock : Yes
Memory Save/Recall : 4 sets
Power Source : AC100V/120V/220V/230V 10%, 50/60Hz; Power consumption : 490VA max.
Dimensions and Weight : 210(W) x 130 (H) x 265(D) mm; Approx. 7kg
Accessories : User Manual x 1, Power Cord x 1, GPD-2303S Test Lead GTL-104A x 2
===========================================================
UNTUK MENGHINDARI PESANAN BARANG ANDA DITOLAK OLEH KAMI, SILAHKAN BERTANYA STOCK BARANG TERLEBIH DAHULU. TERIMA KASIH
Untuk informasi dan pemesanan, silahkan menghubungi :
Telp. & WA : 62.813.3117.0440
Mail : asiaindustri@gmail.com
============================================================
