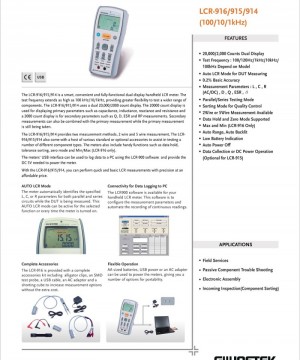

GW Instek LCR-915 Handheld LCR Meter

GW Instek LCR-915 Handheld LCR Meter

============================================================

Features

·         20,000/2,000 Counts Dual Display

·         Test Frequency : 100/120Hz/1/10/100kHz

·         Auto LCR Mode for DUT Measurements

·         0.2% Basic Accuracy

·         Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR

·         Parallel/Series Testing Mode

·         Sorting Mode for Quality Control

·         2Wire or 5Wire Measurement Available

·         Data Hold and Zero Mode Supported

·         Max/Min

·         Auto Range, Auto Backlit

·         Low Battery Indication

·         Auto Power off

·         Data Collection/AC power operation

============================================================

Specifications

TEST FREQUENCY : 100Hz/120Hz/1k/10kHz Selectable

FULL SCALE

Main Display : 20,000/2,000 counts selectable

INDUCTANCE

Range : 20μH ~ 20kH depends on the selected test frequency

CAPACITANCE

Range : 20pF ~ 20mF depends on the selected test frequency

RESISTANCE

Range : 20Ω ~ 200MΩ depends on the selected test frequency

DC RESISTANCE

Range : 200Ω ~ 200MΩ

QUALITY FACTOR (Q)

Range : 0.000 ~ 999

DISSIPATION FACTOR (D)

Range : 0.000 ~ 999

PHASE ANGLE (θ)

Range : -90° ~ 90°

MEASUREMENT CIRCUIT : Parallel or Series selectable

AUTO LCR MODE : Automatically identifies and measures the DUT when the meter is switch on

SORTING MODE : +0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable

OTHER FUNCTIONS : Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar

DISPLAY : LCD mono display

INTERFACE : USB

POWER SOURCE : AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)

DIMENSIONS & WEIGHT : 95(W) × 207(H) × 52(D) mm, Approx. 630 g

ACCESSORIES : User manual x 1, Battery x 1, Shorting Cube x 1, Alligator Clip Set x 1, Magnetic Hang Kit x 1

===========================================================
