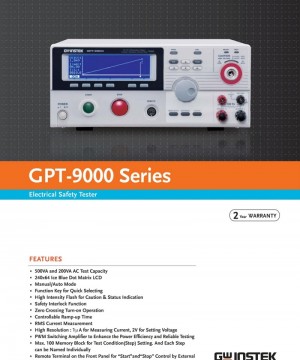

GW Instek GTP-9904 AC/DC Withstanding Voltage/Insulation Resistance/Ground Bond Tester

GW Instek GTP-9904 AC/DC Withstanding Voltage/Insulation Resistance/Ground Bond Tester

============================================================

Features

·         500VA AC Test Capacity

·         Short Current > 200mA

·         240x64 Ice Blue Dot matrix LCD

·         Sweep Function for DUT characteristic analysis

·         Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)

·         Manual/Auto Mode

·         Function Key for quick selection

·         High intensity flash for caution & Status indication

·         Safety INTERLOCK function

·         Zero Crossing Turn-on Operation

·         Controllable Ramp-up Time

·         RMS Current Measurement

·         High resolution: 1uA for measuring current, 2V for setting voltage

·         PWM amplifier to enhance the power efficiency and reliable testing

·         Max. 100 memory block for test condition (step) setting. And each step can be named individually.

·         Remote terminal on the front panel for “start” and “stop” control

·         Rear panel output available

·         Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

============================================================

Specifications

AC WITHSTANDING

*Output-Voltage Range : 0.050kV – 5.000kV AC

*Output-Voltage Resolution : 2V/step

*Output-Voltage Accuracy : ±(1% of setting + 5V) [no load]

DC WITHSTANDING

*Output-Voltage Range : 0.050kV – 6.000kV DC

*Output-Voltage Resolution : 2V/step

*Output-Voltage Accuracy : ±(1% of setting + 5V) [no load]

INSULATION RESISTANCE

*Output Voltage : 50V – 1000V DC

*Output-Voltage Resolution : 50V/step

*Output-Voltage Accuracy : ±(1% of setting + 5V) [no load]

*Measurable Range :

-50≤V≤450V : 0.001 - 0.050GΩ; 0.001 - 0.500GΩ

-500V≤V≤1000V : 0.051 - 2.000GΩ; 0.501 - 9.999GΩ; 10.00 - 50.00GΩ

*Accuracy :

-50≤V≤450V : ±(5% of 1count); ±(10% of 1count)

-500V≤V≤1000V : ±(5% of 1count); ±(10% of 1count); ±(20% of 1count)

GROUND BOND

*Output-Current : 03.00 – 32.00AC

*Output-Current Resolution : 0.01A

*Output-Current Accuracy : 3A I 8A:±(1% of rdg+0.2A), 8A< I 32A:±(1% of rdg+0.05A)

MEMORY

*MANU : 100 blocks

*AUTO : 100 blocks, menu per auto : 16

INTERFACE : Rear Output, RS-232C, USB, Remote Terminal (Front), Signal I/O

DISPLAY : 240 x 64 Ice Blue Dot Matrix LCD

POWER SOURCE : AC100V/120V/220V/230V 10%,50/60Hz; Power Consumption : Max. 1000VA

DIMENSIONS & WEIGHT : 330(W) x 148(H) x 587(D)mm(GPT-9904); Approx. 27kg max.

ACCESSORIES : Quick Start Guide x 1, Power cord x 1, CD x 1(complete user manual), Interlock Key x 1, Remote terminal male plug x 1, Test lead GHT-114 x 1, GTL-115 x 1

===========================================================
