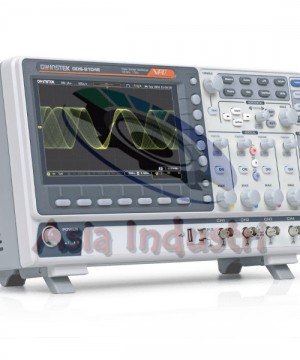

GW Instek GDS-2204E 200MHz, 4-Channel Digital Storage Oscilloscope
Perhatian!
Spesifikasi GW Instek GDS-2204E 200MHz, 4-Channel Digital Storage Oscilloscope
GW Instek GDS-2204E 200MHz, 4-Channel Digital Storage Oscilloscope
============================================================
Features
· 200MHz Bandwidth Selection; 4 Channels
· 1GSa/s Maximum Real-Time Sampling Rate
· Per Channel 10M Memory depth and VPO Waveform Display Technology
· FFT with Maximum 1M points to Provide Higher Frequency Domain Resolution Measurement
· 29,000 Sections of Segmented Memory and Waveform Search Functions
============================================================
Specifications
VERTICAL SENSITIVITY
*Channels : 4Ch + Ext
*Bandwidth : DC-200MHz(-3dB)
*Calculated Rise Time : 1.75ns
*Bandwidth Limit : 20M/100MHz
*Vertical Resolution : 8 bits : 10mV – 10V/div
*Record Length : 10M/ch
*Real Time Sampling Rate : Max. 1 Gsa/s
*Waveform Update Rate : 120,000wfms/s
TRIGGER
*Source : CH1, CH2, CH3, CH4, Line, Ext
*Trigger Mode : Auto (Supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
EXT TRIGGER
*Range : ±15V
*Sensitivity : DC – 100MHz Approx. 100mV; 100MHz – 200MHz Approx. 150mV
HORIZONTAL
*Time base Range : 1ns/div – 100s/div (1-2-5 increments); ROLL : 100ms/div – 100s/div
*Pre-Trigger : 10 div maximum
DISPLAY : 8” 800 x 480 TFT WVGA color display
INTERFACE : USB Port, Ethernet Port (LAN), Go/NoGo BNC
POWER SOURCE : AC 100V – 240V, 50Hz – 60Hz, auto selection
DIMENSIONS & WEIGHT : 384(W) X 208(H) X 127.3(D)mm, Approx. 2.8 kg
ACCESSORIES : User manual CD x 1, Power cord x 1, GTP-200B-4 200MHz (10:1/1:1) Switchable passive probe for GDS-2202E/2204E (one per channel)
===========================================================
