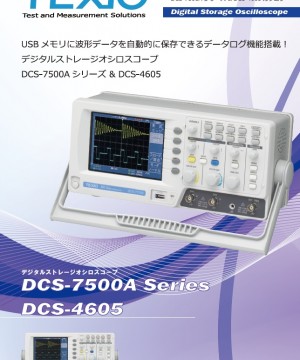

TEXIO DCS-7510A 100MHz, 2-Channel Digital Storage Oscilloscope

Update Terakhir
23-08-2022
Minimum Pembelian
1 Unit
Dilihat Sebanyak
24 kali
Lokasi
Banten - Tangerang Selatan - Pondok Aren
Harga
Rp. 9.600.000
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi TEXIO DCS-7510A 100MHz, 2-Channel Digital Storage Oscilloscope

TEXIO DCS-7510A 100MHz, 2-Channel Digital Storage Oscilloscope

============================================================

Features

·         Automatic measurement functions 27 kind

·         1GS/s Sampling

·         Various trigger functions Edge trigger, Video trigger and Pulse trigger functions are available.

·         An "educational mode" function can be used in order to prevent a student from using an automatic calculation function.

·         Application software; FreeWave

·         Go-NoGo function

·         Data logger function

============================================================

Specifications

VERTICAL

*Sensibiity : 2mV/div – 10V/div (1-2-5 steps)

*Accuracy : ±(3% x [Readout] + 0.1div + 1mV)

*Bandwidth : DC (10Hz) -100MHz

*Rise Time : 3.5ns max.

TRIGGER

*Sources : CH1, CH2, LINE, EXT

*Modes : AUTO, NORMAL, SINGLE, TV (Video), Edge, Pulth Width, Forcing

*Coupling : AC, DC, Low/High Frequency Rejection, Noise Rejection

INTERFACE

*USB Device Port : Standard equipment, Compliant with USB 1.1 and 2.0 full-speed, Compatible with PictBridge printers

*SD Card Slot : Standard equipment, Compliant with SD / SDHC (Class 2, 4 and 6), Capacity 32 GB Max. (SDHC)

GENERAL

*Power Requirements : 100V – 240V AC, 47Hz – 63Hz

*Power Consumption : 18 Watts, 40VA max.

*Dimensions : 341.5 (W) x 162.3 (H) x 159 (D) mm

*Weight : Approx. 2.5kg

*Accessories : Probe, AC Power Cord, CD-ROM (Instruction Manual, APP Software, FreeWave)

===========================================================

UNTUK MENGHINDARI PESANAN BARANG ANDA DITOLAK OLEH KAMI, SILAHKAN BERTANYA STOCK BARANG TERLEBIH DAHULU. TERIMA KASIH

Untuk informasi dan pemesanan, silahkan menghubungi :

Telp. & WA : 62.813.3117.0440

Mail : asiaindustri@gmail.com

============================================================
