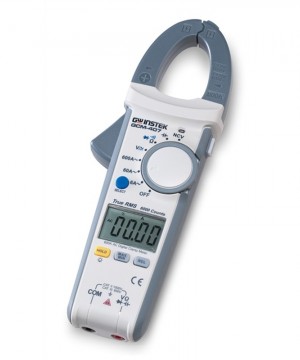

GW Instek GCM-407 600A AC Digital Clamp Meter

GW Instek GCM-407 600A AC Digital Clamp Meter

============================================================

Features

·         True RMS Measurement

·         AC 600A/750V, DC 1000V Max. Input

·         Auto Range Except Current Measurement

·         Auto Power Off

·         Capacitance Measurement

·         Non-Contact Voltage Sensing Function

·         Max. Clamp Size Ø 30mm

============================================================

Specifications

ACV

-Range : 6V, 60V, 600V, 750V

-Resolution : 0.001V, 0.01V, 0.1V, 1V

ACA

-Range : 6A, 60A, 600A

-Resolution : 0.001A, 0.01A, 1A

DCV

-Range : 600mV, 6V, 60V, 600V, 1000V

-Resolution : 0.1mV, 0.001V, 0.01V, 0.1V, 1V

OHM

-Range : 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ

-Resolution : 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ

DIODE

-Range : 6V

-Resolution : 0.001V

CONTINUITY

-Range : 600Ω

-Resolution : 0.1Ω

CAPACITANCE

-Range : 99nF, 999nF, 9µF, 99µF, 999µF, 9mF, 59mF

-Resolution : 0.01nF, 0.1nF, 0.001µF, 0.01µF, 0.1µF, 0.001mF, 0.01mF

NCV (Non-Contact Voltage)

-Range : < 10mm

-Accuracy : AC Voltage only

OTHER FUNCTION : Data Hold, MAX/MIN, REL, Backlight, Flashlight

DISPLAY : LCD, 6000 counts max. Display

CLAMP OPENING DIAMETER : Ø30mm max.

POWER SOURCE : 3 AAA 1.5V zinc manganese batteries

DIMENSIONS & WEIGHT : 228(L) x 77(W) x 41(H)mm; Approx. 265g (inclusive of the battery)

ACCESSORIES : User manual x 1, Test leads, Carrying case

===========================================================
