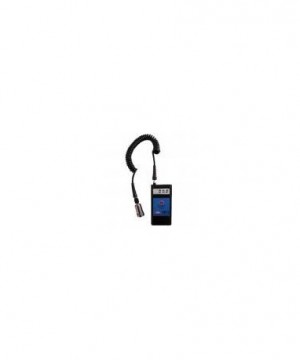

Portable Vibration Meter VM12
Spesifikasi Portable Vibration Meter VM12
Type : VM-12 (MMF-Germany)
Specification :
▪ | Measuring range | : | 0,5 .. 200 mm/s; 10 .. 1000 Hz |
▪ | Display quantity | : | True RMS |
▪ | Display | : | 3 1⁄2 digits LCD, character height 8.9mm |
▪ | Shut-off timer | : | after 1 .. 2 minutes |
▪ | Battery | : | 9 V battery (IEC 6F22 / PP3) |
▪ | Battery indicator | : | by LED |
▪ | Battery operating time | : | approx. 30 h with Alkaline battery, |
approximately 7 h with NiMH accumulator | |||
▪ | Operating temperature range | : | -4 .. 130 °F, < 95 % relative humidity, |
no condensation | |||
▪ | Dimensions without sensor | : | 4.4 x 2.1 x 0.9 in³ |
▪ | Weight without sensor | : | 130 g |
▪ | Type | : | Piezoelectric shear accelerometer, |
Low Power IEPE | |||
▪ | Sensitivity | : | approx. 2 mV/ms-2 |
▪ | Resonant frequency | : | > 28 kHz |
▪ | Transverse sensitivity | : | < 5 % |
▪ | Cable | : | Coiled cable, stretched length |
approximately 1.5 m, Ø 4 mm | |||
▪ | Dimensions | : | Ø .74 in x 1.6 in height |
▪ | Weight | : | 50 g |
▪ | Coupling | : | M5 thread, clamping magnet Mod. 008, |
: | probe Mod. 001 (both included) | ||
▪ | Standard accessories | : | Main Unit |
: | Vibration sensor with spiral cable | ||
: | Clamping magnet Mod.008 | ||
: | Vibration probe Mode.001 | ||
: | Manual Book | ||
: | Plastic case | ||
: | Belt Case |
