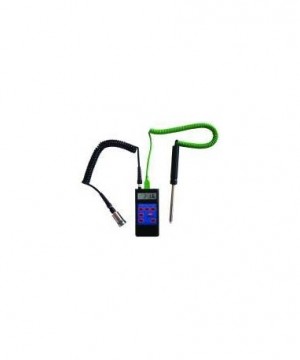

Portable Vibration Meter VM15
Spesifikasi Portable Vibration Meter VM15
Portable Vibration Meter for Machine
Type : VM-15
Specification :
▪ | Vibration acceleration Range | ||
Range | : | 0,5 .. 200 m/s² | |
Accuracy | : | ± 5 %, ± 2 digits | |
Frequency | : | 3 .. 10 000 Hz (-3 dB) | |
▪ | Vibration acceleration, highpass filtered | ||
Range | : | 0,5 .. 200 m/s² | |
Accuracy | : | ± 5 %, ± 2 digits | |
Frequency | : | 1000 .. 10 000 Hz (-3 dB) | |
▪ | Vibration velocity | ||
Range | : | 0,5 .. 200 m/s | |
Accuracy | : | ± 5 %, ± 2 digits | |
Frequency | : | 3 .. 1000 Hz (-3 dB) | |
▪ | Display modes | : | True RMS and true peak-to-peak value |
selectable by key | |||
▪ | Display | : | 3 1⁄2 digits LCD, character height 8.9mm |
▪ | Signal output | : | AC signal of selected measuring range, |
± 3 V via 100 Ω, 3.5 mm phone jack | |||
▪ | Shut-off timer | : | after 1 .. 2 minutes |
▪ | Battery | : | 9 V battery (IEC 6F22 / PP3) or |
accumulator, battery indicator with LED | |||
▪ | Battery operating time | : | approximately 20 h with Alkaline battery, |
approximately 5 h with NiMH accumulator | |||
▪ | Operating temperature | : | -4 .. 130 °F, < 95 % relative humidity, |
no condensation | |||
▪ | Dimensions | : | 125 x 60 x 25 mm (with out sensor) |
▪ | Weight | : | 150 g (with out sensor) |
