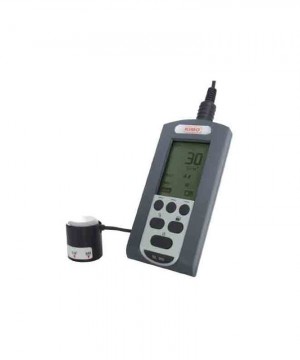

PORTABLE SOLARIMETER SL-200 KIMO
Spesifikasi PORTABLE SOLARIMETER SL-200 KIMO
| PORTABLE SOLARIMETER | |||
| Type : SL-200 | |||
| Product : Kimo Instruments | |||
| Specification : | |||
| 1. SL-200 | |||
| Solar irrigation measuring range | : | from 1 W/ m2 to 1300 W/ m2 | |
| Energetic exposure measuring range | : | 1 Wh/ m2 to 500 kWh/ m2 | |
| Frequency of the measure | : | 2 / s | |
| Accuracy | : | 5% of measurement | |
| Calculation frequency ( W/ m2) | : | 1 / min ( average on 60 seconds) | |
| Storage capacity | : | 31 days, 44640 saved recording points | |
| Fast datas download | : | 1000 values/ second | |
| Detection | : | Out of range and sensor default | |
| Operating temperature | : | from -10° C to + 50° C | |
| Storage temperature | : | From -10° C to + 55° C | |
| Package dimensions | : | 58 x 120 x 33 mm | |
| Autonomy | : | More than 72 hours in continuous mode | |
| : | Unlimited with power supply adapter | ||
| Power supply | : | 3 LR3-AAA batteries | |
| Electronic | : | Digital | |
| Electronic card | : | Varnish | |
| Conformity | : | In accordance with RoHS directives | |
| 2. SOLAR CELL | |||
| Spectral response | : | from 400 to 1100 nm | |
| Nominal sensitivity | : | 100mv for 1000W/m2 * | |
| Response in cosine | : | corrected until 80° | |
| Coefficient in temperature | : | +0,1% /°C | |
| Effective area | : | 1 cm2 | |
| Humidity dependence | : | 100% RH | |
| UV performance | : | excellent (PMMA filter) | |
| Mode | : | photovoltaic | |
| Material. | : | polycristallin silicon | |
| Front face | : | translucent PMMA | |
| Cell weight. | : | .60g | |
| Cell dimensions | : | 30 x 32 mm | |
| Cable length | : | 1,25 m (can be unplugged) | |
