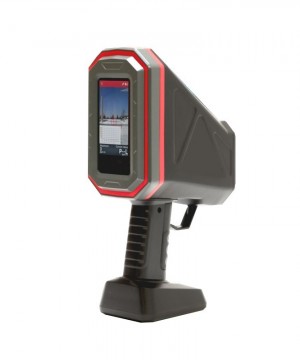

Handheld Laser Gas Leak Detector Type : Gas-Track LZ-50
Spesifikasi Handheld Laser Gas Leak Detector Type : Gas-Track LZ-50
Type : Gas-Track LZ-50
Product : Sensit Technologies (USA)
Specification :
▪ | Detection Technology | : | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
▪ | Methane Detection Range | : | 0-50,000ppm-m in 1ppm-m increments |
▪ | Sensitivity | : | 5ppm-m ≤15m (50ft)/10ppm-m ≤50m (150ft) @ |
: | > 300ppm-m | ||
▪ | Response Time | : | < 0.1 seconds |
▪ | Detection Distance | : | 0.5m to 50m (1.5’ to 150’) |
: | Distance may vary depending on reflection | ||
▪ | Distance Indicator | : | 0.2m to 30m (6” to 100’) |
: | Range may vary depending on reflection | ||
▪ | Beam Dimension | : | Conical, 60cm diameter at 50m (24” at 150’) |
▪ | Alarms | : | 3 adjustible threshold alarms with baseline (Level 1, 2, 3) |
: | Visual, Audible, and Tactile | ||
▪ | Warnings | : | Low reflection, low battery |
▪ | Calibration/Bump Test | : | Carrying case incorporates calibration/bump test cell. |
▪ | Laser classifications | : | IR laser (methane detection) Class 3R |
: | Target laser (green) Class 3R | ||
: | Distance laser (red) Class 3R | ||
▪ | Communication | : | Wifi |
▪ | Display | : | 4” LCD with Incorporated “cross hair” |
▪ | User Interface | : | Android |
▪ | Operational Temp | : | -20C to 50C (-4F to 122F) |
▪ | Storage Temp | : | -40C to 60C (-40F to 140F) |
▪ | Humidity | : | 5 to 95% non-condensing |
▪ | Enclosure | : | Designed to meet IP54 |
▪ | Intrinsic Safety | : | Designed to meet US and ATEX |
▪ | Weight | : | 1.5kgs (3.3lbs) |
▪ | Size | : | 165mm (6.5”) x102mm (4.1”) x341mm (13.4”) |
▪ | Power Source | : | Internal Lithium Ion |
▪ | Battery Life | : | 5 Hours continuous |
▪ | Recharge Time | : | 3 to 4 hours |
