REAL TIME WATER QUALITY MONITORING SYSTEM Type : WQM-35
Spesifikasi REAL TIME WATER QUALITY MONITORING SYSTEM Type : WQM-35
Type : WQM-35
Spesifikasi :
| A. Parameter yang di ukur | Range | Accuracy | ||
| ▪ | COD | : | 0-10.000 mg/l | ±5% |
| ▪ | Temperature | : | 0˚ C - 85˚ C | ±0.5 °C; ±0.1 °C |
| ▪ | Dissolved Oxygen | : | 0-50 mg/l | 0,1 mg/L |
| ▪ | pH | : | 0 - 14pH | ±0.05 pH |
| ▪ | Turbidity | : | 0 - 10.000 NTU | ±5%FS |
| ▪ | TDS | : | 0 - 3000 mg/L | ±1%FS |
| ▪ | TSS | : | 0 - 50.000 ng/L | ±5%FS |
| ▪ | Ammonia | : | 0 - 1100 mg/l | ±5%FS |
| ▪ | Nitrate | : | 0 - 1000 mg/L | ±5% |
| ▪ | Nitrite | : | 0 - 100 mg/L | ±5% |
| ▪ | BOD | : | 0 - 5,000 mg/L | ±5% in standard solution |
| ▪ | Conductivity | : | 0 - 200 mS/cm | ±1% FS |
| ▪ | Salinity | : | 0 - 14.9 ppt | ±1% FS |
| ▪ | Depth | : | 0 - 100 m | ±0,1% FS; 0.05% FS |
| ▪ | ORP | : | -1500 - 1500 mV | ±5 mV |
| ▪ | Debit | : | 0.02~15 m/s | ± 0.02 m/s |

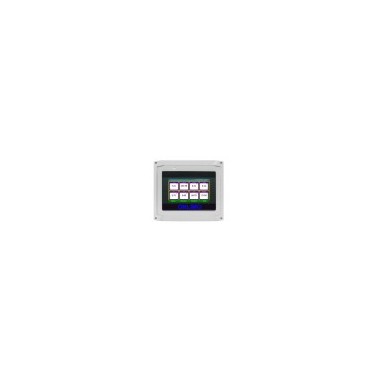

| B. Monitoring Instruments (Fiture HMI) | ||||
| ▪ | 7" color touch screen LCD display | |||
| ▪ | Operating temperature: 0~65 C | |||
| ▪ | Operating humidity: 0~95% RH | |||
| ▪ | 16 MB solid state, rotating memory, | |||
| no data loss after power failure | ||||
| ▪ | IP66 enclosure | |||
| C. Water Quality Spectro | ||||
| ▪ | Measurement range | : | UV-IR 200~800 nm | |
| ▪ | Light source | : | Xenou flash lamp, 20 years life | |
| ▪ | Light path | : | 1, 2, 5, 10, 35 mm (selectable) | |
| ▪ | Measurement interval | : | 10 sec to 1 hour (adjustable) | |
| ▪ | Operation pressure | : | Max. 10 Kgf/cm2 | |
| ▪ | Operating temperature | : | -10~50 o | |
| ▪ | Process flow rate | : | max.3 m/s | |
| ▪ | Safety | : | CE, FCC | |
| ▪ | Protection | : | IP68 | |
